Magnet Lifter >> Automatic Permanent Magnet Lifter
Product Name
Automatic Permanent Magnet Lifter

Features:
1.Use In Single Magnet Or Multiple Magnet Configurations.
2.Used In Heavy Lift Applications In All Types Of Environments.
3.By a special mechanical structures, can automatic loading and discharge material, which include iron & steel plates, ingots, profiled bar.
For large size plates or material, multi-magnetic lifters have capability to provide perfect solution.

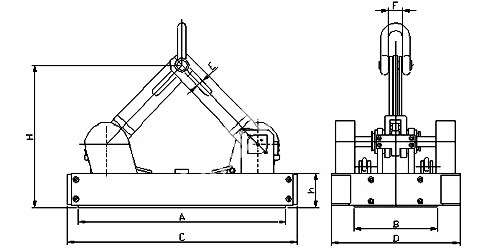

Product No. Rated Lifting A B C D E F h H Self weight
kg mm mm mm mm mm mm mm mm Kg
MHAE0172-AM001 1000 685 238 770 410 28 48 102 415 200
MHAE0172-AM002 1000 596 285 685 450 28 48 104 410 175
MHAE0172-AM003 1500 760 285 845 450 28 48 104 440 245
MHAE0172-AM004 2000 760 328 845 500 28 48 104 440 285
MHAE0172-AM005 2000 672 360 758 540 28 48 112 420 265
MHAE0172-AM006 3000 862 406 948 585 36 58 112 480 380
MHAE0172-AM007 3000 786 358 872 545 36 58 124 480 360
MHAE0172-AM008 5000 1016 424 1100 610 38 62 124 580 490
