Marine Valves >> Mud Box >> Straight Type Mud Box >> Straight Mud Box
Product Name Straight Mud Box
Applicable Medium Seawater,Fresh Water,Sewage

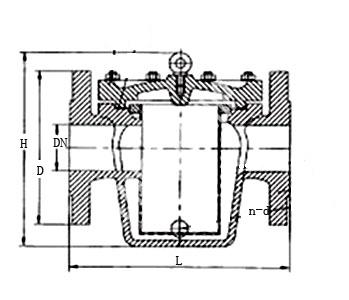

Product No. DN D n H d L H
MFVENX4-21 40 150 4 110 18 200 205
MFVENX4-22 50 165 4 125 18 230 225
MFVENX4-23 65 185 4 145 18 290 260
MFVENX4-24 80 200 8 160 18 310 310
MFVENX4-25 100 220 8 180 18 350 345
MFVENX4-26 125 250 8 210 18 400 395
MFVENX4-27 150 285 8 240 22 480 465
MFVENX4-28 200 340 8 295 22 600 565
MFVENX4-29 250 395 12 350 22 600 610
MFVENX4-210 300 445 12 400 22 600/700 675
MFVENX4-211 350 505 16 460 22 610 790
MFVENX4-212 400 565 16 515 26 740 990
MFVENX4-213 450 615 20 565 26 1000 1215
