Marine Valves >> Mud Box >> Angle Type Mud Box >> JIS F7203-1998JIS Mud Box
Product Name JIS Mud Box
Standard JIS F7203-1998

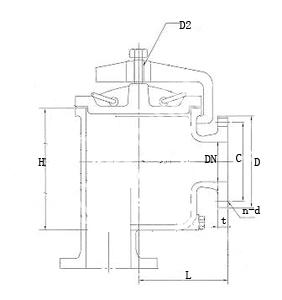

Product No. DN L D C H n-d t D2
MFVENX4-JIS11 40 90 120 95 128 4-15 16 M16
MFVENX4-JIS12 50 120 130 105 160 4-15 16 M16
MFVENX4-JIS13 65 150 165 130 206 4-15 18 M20
MFVENX4-JIS14 80 160 180 145 311 4-19 18 M20
MFVENX4-JIS15 100 190 200 165 262 8-19 20 M22
MFVENX4-JIS16 125 235 235 200 354 8-19 20 M24
MFVENX4-JIS17 150 280 265 230 437 8-19 22 M30
MFVENX4-JIS18 200 330 320 280 540 8-23 24 M36
MFVENX4-JIS19 250 380 385 345 680 12-23 26 M42
