Product Name Blind Flange 150lbs
Standard ANSI B16.5

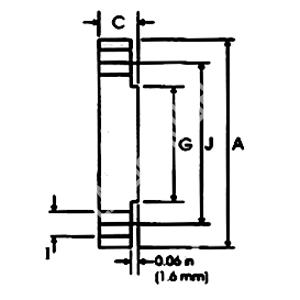

Product No: Pipe Flange Date Raised Face Drilling Date Weight
Pipe Size Outside Dia. A C G Num.of Holes I J kg/piece
in mm mm mm mm mm mm
MFVE601-ANSI01 1/2 21.3 88.9 11.2 35.1 4 15.7 60.45 0.42
MFVE601-ANSI02 3/4 26.7 98.6 12.7 42.9 4 15.7 69.85 0.61
MFVE601-ANSI03 1 33.4 108 14.2 50.8 4 15.7 79.25 0.86
MFVE601-ANSI04 1 1/4 42.2 117.3 15.7 63.5 4 15.7 88.9 1.17
MFVE601-ANSI05 1 1/2 48.3 127 17.5 73.15 4 15.7 98.6 1.53
MFVE601-ANSI06 2 60.3 152.4 19.1 91.9 4 19.1 120.7 2.42
MFVE601-ANSI07 2 1/2 73 177.8 22.4 104.6 4 19.1 139.7 3.94
MFVE601-ANSI08 3 88.9 190.5 23.9 127 4 19.1 152.4 4.93
MFVE601-ANSI09 3 1/2 101.6 215.9 23.9 139.7 8 19.1 177.8 6.17
MFVE601-ANSI10 4 114.3 228.6 23.9 157.2 8 19.1 190.5 7
MFVE601-ANSI11 5 141.3 254 23.9 185.7 8 22.4 215.9 8.63
MFVE601-ANSI12 6 168.3 279.4 25.4 215.9 8 22.4 241.3 11.3
MFVE601-ANSI13 8 219.1 342.9 28.4 269.7 8 22.4 298.5 19.6
MFVE601-ANSI14 10 273 406.4 30.2 323.9 12 25.4 362 28.8
MFVE601-ANSI15 12 323.8 482.6 31.75 381 12 25.4 431.8 43.2
MFVE601-ANSI16 14 355.6 533.4 35.1 412.8 12 28.4 476.3 59.1
MFVE601-ANSI17 16 406.4 596.9 36.6 469.9 16 28.4 539.8 76
MFVE601-ANSI18 18 457.2 635 39.6 533.4 16 31.75 577.9 93.7
MFVE601-ANSI19 20 508 698.5 42.9 584.2 20 31.75 635 122
MFVE601-ANSI20 24 609.6 812.8 47.8 692.2 20 35.1 749.3 185
Raw Material For Forged Flange　
Grade C Si Mn P S Al Ni Cu Cr V Nb Ti
C22.8 0.18-0.23 ≤0.4 0.4-0.9 ≤0.035 ≤0.03 0.015-0.05 ≤0.3 ≤0.03 ≤0.3 　 　 　
P250GH 0.18-0.23 0.2-0.4 0.4-0.9 0.025 0.015 0.015-0.05 ≤0.3 ≤0.03 ≤0.3 0.02 　 　
Q235 0.14-0.22 ≤0.3 0.3-0.65 ≤0.045 ≤0.05 　 　 　 　 　 　 　
Q345D ≤0.18 ≤0.55 1-1.6 ≤0.03 ≤0.03 　 ≤0.03 ≤0.3 ≤0.3 0.02-0.15 0.015-0.06 0.02-0.2
20G 0.17-0.23 0.17-0.37 0.35-0.65 ≤0.035 ≤0.035 　 ≤0.3 ≤0.25 ≤0.25 　 　 　
A105 ≤0.35 0.1-0.35 0.6-1.05 ≤0.035 ≤0.04 　 ≤0.4 ≤0.4 ≤0.3 　 　 　
SS400 ≤0.21 ≤0.3 ≤0.14 ≤0.035 ≤0.035 　 　 　 　 　 　 　
RST37.2 ≤0.17 ≤0.12 ≤1.25 ≤0.035 ≤0.035 　 　 　 　 　 　 　
S235JRG2 ≤0.17 ≤0.12 ≤1.25 ≤0.035 ≤0.035 　 　 　 　 　 　 　
