Marine Pipe Fitting >> Flanges >> ANSI Flanges >> Blind FlangesANSI B16.5 Blind Flange 300lbs
　
Product Name Blind Flange 300lbs
Standard ANSI B16.5
Product No: Pipe Flange Date Raised Face Drilling Date Weight

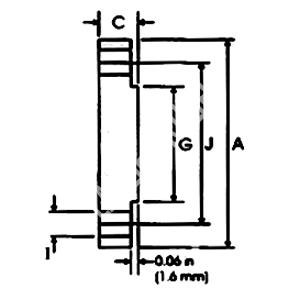

Pipe Size Outside Dia. A C G Num.of Holes I J kg/piece
in mm mm mm mm mm mm
MFVE602-ANSI01 1/2 21.3 95.2 14.2 35.1 4 15.7 60.55 0.64
MFVE602-ANSI02 3/4 26.7 117.3 15.7 42.9 4 19 82.5 1.11
MFVE602-ANSI03 1 33.4 123.9 17.5 50.8 4 19 88.9 1.39
MFVE602-ANSI04 1 1/4 42.2 133.3 19 63.5 4 19 98.5 1.79
MFVE602-ANSI05 1 1/2 48.3 155.4 20.6 73.15 4 22.3 114.3 2.66
MFVE602-ANSI06 2 60.3 165.1 22.3 91.9 8 19.1 127 3.18
MFVE602-ANSI07 2 1/2 73 190.5 25.4 104.6 8 22.3 149.3 4.85
MFVE602-ANSI08 3 88.9 209.5 28.4 127 8 22.3 168.1 6.81
MFVE602-ANSI09 3 1/2 101.6 228.6 30.2 139.7 8 22.3 184.1 8.71
MFVE602-ANSI10 4 114.3 254 31.7 157.2 8 22.3 200.1 11.5
MFVE602-ANSI11 5 141.3 279.4 35 185.7 8 22.3 234.9 15.6
MFVE602-ANSI12 6 168.3 317.5 36.5 215 12 22.3 269.7 20.9
MFVE602-ANSI13 8 219.1 381 41.1 269.7 12 25.4 330.2 34.3
MFVE602-ANSI14 10 273 444.5 47.7 323.9 16 28.4 387.3 53.3
MFVE602-ANSI15 12 323.8 520.7 50.8 381 16 31.7 450.8 78.8
MFVE602-ANSI16 14 355.6 584.2 53.8 412.8 20 31.7 514.3 105
MFVE602-ANSI17 16 406.4 647.7 57.15 469.9 20 35 571.5 137
MFVE602-ANSI18 18 457.2 711.2 60.45 533.4 24 35 628.6 175
MFVE602-ANSI19 20 508 774.7 63.5 584.2 24 35 685.8 221
MFVE602-ANSI20 24 609.6 914.4 69.85 692.2 24 41.1 812.8 339
Raw Material For Forged Flange
Grade C Si Mn P S Al Ni Cu Cr V Nb Ti
C22.8 0.18-0.23 ≤0.4 0.4-0.9 ≤0.035 ≤0.03 0.015-0.05 ≤0.3 ≤0.03 ≤0.3 　 　 　
P250GH 0.18-0.23 0.2-0.4 0.4-0.9 0.025 0.015 0.015-0.05 ≤0.3 ≤0.03 ≤0.3 0.02 　 　
Q235 0.14-0.22 ≤0.3 0.3-0.65 ≤0.045 ≤0.05 　 　 　 　 　 　 　
Q345D ≤0.18 ≤0.55 1-1.6 ≤0.03 ≤0.03 　 ≤0.03 ≤0.3 ≤0.3 0.02-0.15 0.015-0.06 0.02-0.2
20G 0.17-0.23 0.17-0.37 0.35-0.65 ≤0.035 ≤0.035 　 ≤0.3 ≤0.25 ≤0.25 　 　 　
A105 ≤0.35 0.1-0.35 0.6-1.05 ≤0.035 ≤0.04 　 ≤0.4 ≤0.4 ≤0.3 　 　 　
SS400 ≤0.21 ≤0.3 ≤0.14 ≤0.035 ≤0.035 　 　 　 　 　 　 　
RST37.2 ≤0.17 ≤0.12 ≤1.25 ≤0.035 ≤0.035 　 　 　 　 　 　 　
S235JRG2 ≤0.17 ≤0.12 ≤1.25 ≤0.035 ≤0.035 　 　 　 　 　 　 　
