Product Name Blind Flange 1500lbs
Standard ANSI B16.5

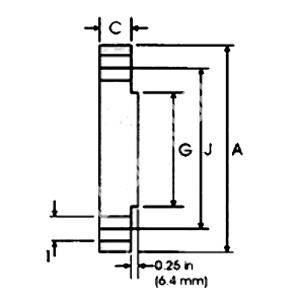

Product No: Pipe Flange Date Raised Face Drilling Date Weight
Pipe Size Outside Dia. A C G Num.of Holes I J kg/piece
in mm mm mm mm mm mm
MFVE606-ANSI01 1/2 21.3 120.6 22.3 35.1 4 22.3 82.5 1.77
MFVE606-ANSI02 3/4 26.7 130 25.4 42.9 4 22.3 88.9 2.42
MFVE606-ANSI03 1 33.4 149.3 28.4 50.8 4 25.4 101.6 3.57
MFVE606-ANSI04 1 1/4 42.2 158.7 28.4 63.5 4 25.4 111.2 4.15
MFVE606-ANSI05 1 1/2 48.3 177.8 31.7 73.15 4 28.4 123.9 5.75
MFVE606-ANSI06 2 60.3 215.9 38.1 91.9 8 25.4 165.1 10.1
MFVE606-ANSI07 2 1/2 73 244.3 41.1 104.6 8 28.4 190.5 14
MFVE606-ANSI08 3 88.9 265.7 47.7 127 8 31.7 203.2 19.1
MFVE606-ANSI09 4 114.3 311.1 53.8 157.2 8 35 241.3 29.9
MFVE606-ANSI10 5 141.3 374.6 73.15 185.7 8 41.1 292.1 58.4
MFVE606-ANSI11 6 168.3 393.7 82.5 215.9 12 38.1 317.6 71.8
MFVE606-ANSI12 8 219.1 482.6 91.9 269.7 12 44.4 393.7 122
MFVE606-ANSI13 10 273 584.2 107.9 323.9 12 50.8 482.6 210
MFVE606-ANSI14 12 323.8 673.1 123.9 381 16 53.8 571.5 316
MFVE606-ANSI15 14 355.6 749.3 133.3 412.8 16 60.45 635 420
MFVE606-ANSI16 16 406.4 825.5 146 469.9 16 66.55 704.8 558
MFVE606-ANSI17 18 457.2 914.4 162 533.4 16 73.15 774.7 760
MFVE606-ANSI18 20 508 984.2 177.8 584.2 16 79.25 831.8 965
MFVE606-ANSI19 24 609.6 1168.4 203.2 692.2 16 91.9 990.6 1558
Raw Material For Forged Flange
Grade C Si Mn P S Al Ni Cu Cr V Nb Ti
C22.8 0.18-0.23 ≤0.4 0.4-0.9 ≤0.035 ≤0.03 0.015-0.05 ≤0.3 ≤0.03 ≤0.3 　 　 　
P250GH 0.18-0.23 0.2-0.4 0.4-0.9 0.025 0.015 0.015-0.05 ≤0.3 ≤0.03 ≤0.3 0.02 　 　
Q235 0.14-0.22 ≤0.3 0.3-0.65 ≤0.045 ≤0.05 　 　 　 　 　 　 　
Q345D ≤0.18 ≤0.55 1-1.6 ≤0.03 ≤0.03 　 ≤0.03 ≤0.3 ≤0.3 0.02-0.15 0.015-0.06 0.02-0.2
20G 0.17-0.23 0.17-0.37 0.35-0.65 ≤0.035 ≤0.035 　 ≤0.3 ≤0.25 ≤0.25 　 　 　
A105 ≤0.35 0.1-0.35 0.6-1.05 ≤0.035 ≤0.04 　 ≤0.4 ≤0.4 ≤0.3 　 　 　
SS400 ≤0.21 ≤0.3 ≤0.14 ≤0.035 ≤0.035 　 　 　 　 　 　 　
RST37.2 ≤0.17 ≤0.12 ≤1.25 ≤0.035 ≤0.035 　 　 　 　 　 　 　
S235JRG2 ≤0.17 ≤0.12 ≤1.25 ≤0.035 ≤0.035 　 　 　 　 　 　 　
