Product Name Blind Flange 2500lbs
Standard ANSI B16.5
Product No: Pipe Flange Date Raised Face Drilling Date Weight

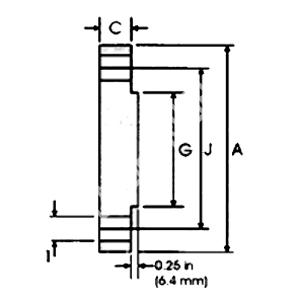

Pipe Size Outside Dia. A C G Num.of Holes I J kg/piece
in mm mm mm mm mm mm
MFVE607-ANSI01 1/2 21.3 133.4 30.2 35.1 4 22.4 88.9 2.99
MFVE607-ANSI02 3/4 26.7 139.7 31.7 42.9 4 22.4 95.3 3.5
MFVE607-ANSI03 1 33.4 158.8 35.1 50.8 4 25.4 108 4.96
MFVE607-ANSI04 1 1/4 42.2 184.2 38.1 63.5 4 28.4 130 7.35
MFVE607-ANSI05 1 1/2 48.3 203.2 44.5 73.15 4 31.75 146.1 10.4
MFVE607-ANSI06 2 60.3 235 50.8 91.9 8 28.4 171.5 15.8
MFVE607-ANSI07 2 1/2 73 266.7 57.15 104.6 8 31.75 196.9 22.6
MFVE607-ANSI08 3 88.9 304.8 66.55 127 8 35.1 228 34.8
MFVE607-ANSI09 4 114.3 355.6 76.2 157.2 8 41.1 273.1 53.9
MFVE607-ANSI10 5 141.3 419.1 91.9 165.7 8 47.88 323.9 90.8
MFVE607-ANSI11 6 168.3 482.6 108 215.9 8 53.8 368.3 141
MFVE607-ANSI12 8 219.1 552.5 127 269.7 12 53.8 438.2 214
MFVE607-ANSI13 10 273 673.1 165.1 323.9 12 66.55 539.8 411
MFVE607-ANSI14 12 323.8 762 184.2 381 12 73.15 619.3 592
Raw Material For Forged Flange
Grade C Si Mn P S Al Ni Cu Cr V Nb Ti
C22.8 0.18-0.23 ≤0.4 0.4-0.9 ≤0.035 ≤0.03 0.015-0.05 ≤0.3 ≤0.03 ≤0.3 　 　 　
P250GH 0.18-0.23 0.2-0.4 0.4-0.9 0.025 0.015 0.015-0.05 ≤0.3 ≤0.03 ≤0.3 0.02 　 　
Q235 0.14-0.22 ≤0.3 0.3-0.65 ≤0.045 ≤0.05 　 　 　 　 　 　 　
Q345D ≤0.18 ≤0.55 1-1.6 ≤0.03 ≤0.03 　 ≤0.03 ≤0.3 ≤0.3 0.02-0.15 0.015-0.06 0.02-0.2
20G 0.17-0.23 0.17-0.37 0.35-0.65 ≤0.035 ≤0.035 　 ≤0.3 ≤0.25 ≤0.25 　 　 　
A105 ≤0.35 0.1-0.35 0.6-1.05 ≤0.035 ≤0.04 　 ≤0.4 ≤0.4 ≤0.3 　 　 　
SS400 ≤0.21 ≤0.3 ≤0.14 ≤0.035 ≤0.035 　 　 　 　 　 　 　
RST37.2 ≤0.17 ≤0.12 ≤1.25 ≤0.035 ≤0.035 　 　 　 　 　 　 　
S235JRG2 ≤0.17 ≤0.12 ≤1.25 ≤0.035 ≤0.035 　 　 　 　 　 　 　
