| Product Name | Slip-on Flange 150lbs | ||||||||||||
| Standard | ANSI B16.5 | ||||||||||||
| Product No: | Pipe | Flange Date | Hub | Raised Face | Drilling Date | Weight | |||||||

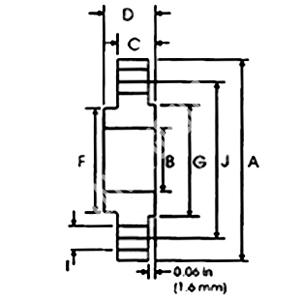

| Pipe Size | Outside Dia. | A | B | C | D | F | G | Num.of Holes | I | J | kg/piece | ||
| in | mm | mm | mm | mm | mm | mm | mm | mm | mm | ||||
| MFVE608-ANSI01 | 1/2 | 21.3 | 88.9 | 22.4 | 11.2 | 15.7 | 30.2 | 35.1 | 4 | 15.7 | 60.45 | 0.39 | |
| MFVE608-ANSI02 | 3/4 | 26.7 | 98.6 | 27.7 | 12.7 | 15.7 | 38.1 | 42.9 | 4 | 15.7 | 69.85 | 0.56 | |
| MFVE608-ANSI03 | 1 | 33.4 | 108 | 34.5 | 14.2 | 17.5 | 49.3 | 50.8 | 4 | 15.7 | 79.25 | 0.78 | |
| MFVE608-ANSI04 | 1 1/4 | 42.2 | 117.3 | 43.2 | 15.7 | 20.6 | 58.7 | 63.5 | 4 | 15.7 | 88.9 | 1.03 | |
| MFVE608-ANSI05 | 1 1/2 | 48.3 | 127 | 49.5 | 17.5 | 22.4 | 65 | 73.15 | 4 | 15.7 | 98.6 | 1.32 | |
| MFVE608-ANSI06 | 2 | 60.3 | 152.4 | 62 | 19.1 | 25.4 | 77.7 | 91.9 | 4 | 19.1 | 120.7 | 2.06 | |
| MFVE608-ANSI07 | 2 1/2 | 73 | 177.8 | 74.7 | 22.4 | 28.4 | 90.4 | 104.8 | 4 | 19.1 | 139.7 | 3.28 | |
| MFVE608-ANSI08 | 3 | 88.9 | 190.5 | 90.7 | 23.9 | 30.2 | 108 | 127 | 4 | 19.1 | 152.4 | 3.85 | |
| MFVE608-ANSI09 | 3 1/2 | 101.6 | 215.9 | 103.4 | 23.9 | 31.75 | 122.2 | 139.7 | 8 | 19.1 | 177.8 | 4.81 | |
| MFVE608-ANSI10 | 4 | 114.3 | 228.6 | 116.1 | 23.9 | 33.3 | 134.9 | 157.2 | 8 | 19.1 | 190.5 | 5.3 | |
| MFVE608-ANSI11 | 5 | 141.3 | 254 | 143.8 | 23.9 | 36.6 | 163.6 | 185.7 | 8 | 22.4 | 215.9 | 6.07 | |
| MFVE608-ANSI12 | 6 | 168.3 | 279.4 | 170.7 | 25.4 | 39.6 | 192 | 215.9 | 8 | 22.4 | 241.3 | 7.45 | |
| MFVE608-ANSI13 | 8 | 219.1 | 342.9 | 221.5 | 28.4 | 44.5 | 246.1 | 269.7 | 8 | 22.4 | 298.5 | 12.1 | |
| MFVE608-ANSI14 | 10 | 273 | 406.4 | 276.3 | 30.2 | 49.3 | 304.8 | 323.9 | 12 | 25.4 | 362 | 16.5 | |
| MFVE608-ANSI15 | 12 | 323.8 | 482.6 | 327.1 | 31.75 | 55.6 | 365.3 | 381 | 12 | 25.4 | 431.8 | 26.2 | |
| MFVE608-ANSI16 | 14 | 355.6 | 533.4 | 359.1 | 35.1 | 57.15 | 400.1 | 412.8 | 12 | 28.4 | 476.3 | 34.6 | |
| MFVE608-ANSI17 | 16 | 406.4 | 596.9 | 410.5 | 36.6 | 63.5 | 457.2 | 469.9 | 16 | 28.4 | 539.8 | 44.8 | |
| MFVE608-ANSI18 | 18 | 457.2 | 635 | 461.8 | 39.6 | 68.3 | 505 | 533.4 | 16 | 31.75 | 577.9 | 48.9 | |
| MFVE608-ANSI19 | 20 | 508 | 698.5 | 513.1 | 42.9 | 73.15 | 558.8 | 584.2 | 20 | 31.75 | 635 | 61.9 | |
| MFVE608-ANSI20 | 24 | 609.6 | 812.8 | 616 | 47.8 | 82.6 | 663.4 | 692.2 | 20 | 35.1 | 749.3 | 86.9 | |
| Raw Material For Forged Flange | ||||||||||||||||||||
| Grade | C | Si | Mn | P | S | Al | Ni | Cu | Cr | V | Nb | Ti | ||||||||
| C22.8 | 0.18-0.23 | ≤0.4 | 0.4-0.9 | ≤0.035 | ≤0.03 | 0.015-0.05 | ≤0.3 | ≤0.03 | ≤0.3 | |||||||||||
| P250GH | 0.18-0.23 | 0.2-0.4 | 0.4-0.9 | 0.025 | 0.015 | 0.015-0.05 | ≤0.3 | ≤0.03 | ≤0.3 | 0.02 | ||||||||||
| Q235 | 0.14-0.22 | ≤0.3 | 0.3-0.65 | ≤0.045 | ≤0.05 | |||||||||||||||
| Q345D | ≤0.18 | ≤0.55 | 1-1.6 | ≤0.03 | ≤0.03 | ≤0.03 | ≤0.3 | ≤0.3 | 0.02-0.15 | 0.015-0.06 | 0.02-0.2 | |||||||||
| 20G | 0.17-0.23 | 0.17-0.37 | 0.35-0.65 | ≤0.035 | ≤0.035 | ≤0.3 | ≤0.25 | ≤0.25 | ||||||||||||
| A105 | ≤0.35 | 0.1-0.35 | 0.6-1.05 | ≤0.035 | ≤0.04 | ≤0.4 | ≤0.4 | ≤0.3 | ||||||||||||
| SS400 | ≤0.21 | ≤0.3 | ≤0.14 | ≤0.035 | ≤0.035 | |||||||||||||||
| RST37.2 | ≤0.17 | ≤0.12 | ≤1.25 | ≤0.035 | ≤0.035 | |||||||||||||||
| S235JRG2 | ≤0.17 | ≤0.12 | ≤1.25 | ≤0.035 | ≤0.035 | |||||||||||||||
