Marine Pipe Fitting >> Flanges >> ANSI Flanges >> Integral FlangesANSI B16.5 Slip-on Flange 300lbs
　
Product Name Slip-on Flange 300lbs
Standard ANSI B16.5
Product No: Pipe Flange Date Hub Raised Face Drilling Date Weight

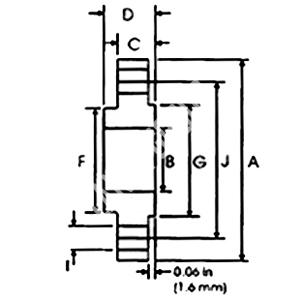

Pipe Size Outside Dia. A B C D F G Num.of Holes I J kg/piece
in mm mm mm mm mm mm mm mm mm
MFVE609-ANSI01 1/2 21.3 95.2 22.4 14.2 22.4 38.1 35.1 4 15.7 66.55 0.64
MFVE609-ANSI02 3/4 26.7 117.3 27.7 15.7 25.4 47.7 42.9 4 19.1 82.5 1.12
MFVE609-ANSI03 1 33.4 123.9 34.5 17.5 26.9 53.8 50.8 4 19.1 88.9 1.36
MFVE609-ANSI04 1 1/4 42.2 133.3 43.2 19 26.9 63.5 63.5 4 19.1 98.8 1.68
MFVE609-ANSI05 1 1/2 48.3 155.4 49.5 20.6 30.2 69.85 73.15 4 22.4 114.3 2.49
MFVE609-ANSI06 2 60.3 165.1 62 22.3 33.2 84 91.9 8 19.1 127 2.87
MFVE609-ANSI07 2 1/2 73 190.5 74.7 25.4 38.1 100 104.6 8 22.4 149.4 4.32
MFVE609-ANSI08 3 88.9 209.5 90.7 28.4 42.9 117.3 127 8 22.4 168.1 5.85
MFVE609-ANSI09 3 1/2 101.6 228.6 103.4 30.2 44.4 133.3 139.7 8 22.4 184.2 7.34
MFVE609-ANSI10 4 114.3 254 116.1 31.7 47.7 146 157.2 8 22.4 200.1 9.61
MFVE609-ANSI11 5 141.3 279.4 143.8 35 50.8 177.8 185.7 8 22.4 234.9 12.3
MFVE609-ANSI12 6 168.3 317.5 170.7 36.5 52.3 206.2 215.9 12 22.4 269.7 15.6
MFVE609-ANSI13 8 219.1 381 221.5 41.1 61.8 26.3 269.7 12 25.4 330.2 24.2
MFVE609-ANSI14 10 273 444.5 276.3 47.7 66.5 320.5 323.9 16 28.4 387.3 34.1
MFVE609-ANSI15 12 323.8 520.7 327.1 50.8 73.15 374.6 381 16 31.7 450.8 49.8
MFVE609-ANSI16 14 355.6 584.2 359.1 53.8 76.2 412.8 425.4 20 31.7 514.4 69.9
MFVE609-ANSI17 16 406.4 647.7 410.5 57.15 82.5 482.6 489.9 20 35 571.5 88.1
MFVE609-ANSI18 18 457.2 711.2 461.8 60.45 88.9 533.4 533.4 24 35 628.7 109
MFVE609-ANSI19 20 508 774.7 513.1 63.5 95.2 587.2 584.2 24 35 685.8 134
MFVE609-ANSI20 24 609.6 914.4 616 69.85 106.4 701.5 692.2 24 41 812.8 201
Raw Material For Forged Flange
Grade C Si Mn P S Al Ni Cu Cr V Nb Ti
C22.8 0.18-0.23 ≤0.4 0.4-0.9 ≤0.035 ≤0.03 0.015-0.05 ≤0.3 ≤0.03 ≤0.3 　 　 　
P250GH 0.18-0.23 0.2-0.4 0.4-0.9 0.025 0.015 0.015-0.05 ≤0.3 ≤0.03 ≤0.3 0.02 　 　
Q235 0.14-0.22 ≤0.3 0.3-0.65 ≤0.045 ≤0.05 　 　 　 　 　 　 　
Q345D ≤0.18 ≤0.55 1-1.6 ≤0.03 ≤0.03 　 ≤0.03 ≤0.3 ≤0.3 0.02-0.15 0.015-0.06 0.02-0.2
20G 0.17-0.23 0.17-0.37 0.35-0.65 ≤0.035 ≤0.035 　 ≤0.3 ≤0.25 ≤0.25 　 　 　
A105 ≤0.35 0.1-0.35 0.6-1.05 ≤0.035 ≤0.04 　 ≤0.4 ≤0.4 ≤0.3 　 　 　
SS400 ≤0.21 ≤0.3 ≤0.14 ≤0.035 ≤0.035 　 　 　 　 　 　 　
RST37.2 ≤0.17 ≤0.12 ≤1.25 ≤0.035 ≤0.035 　 　 　 　 　 　 　
S235JRG2 ≤0.17 ≤0.12 ≤1.25 ≤0.035 ≤0.035 　 　 　 　 　 　 　
