Common-Sling Connectings >> Hooks >> Clevis Slip Hooks (With Clip) >> Clevis Slip Hook (With Clip)
Product Name Clevis Slip Hook (With Clip)
Product Material Steel

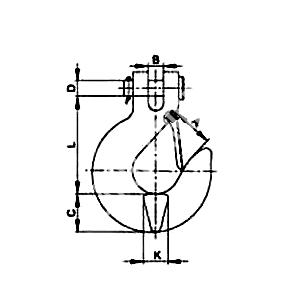

Product No. Chain dia Working Load Limit A B C D K L Weight
S(6) T(8)
MHAE0156-CS001 1/4 0.5 1 20 11 21 9 13 65 0.23
MHAE0156-CS002 5/16 1 1.5 24 13 24 10 14 73 0.34
MHAE0156-CS003 3/8 1.5 2.5 29 15 29 11 17 83 0.54
MHAE0156-CS004 7/16 2 3.5 30 17 35 13 21 94 0.93
MHAE0156-CS005 1/2 3 4 36 19 40 16 23 102 1.27
MHAE0156-CS006 5/8 4 6 45 23 46 19 28 125 2.20
MHAE0156-CS007 3/4 6 10 58 33 60 24 37 155 4.67

Note:
1. Adopted high-quality alloy steel and throughout swaged forging process.
2. Proof loaded at 2 times the Working Load Limit. Minimum Ultimate Load is 4 times the Working Load Limit.
3. Heat Treated.
4. There are signs such as Working Load Limit in the link.
