S Hook,S Hook,Hooks,Common-Sling Connectings -Product Details


Product Name	S Hook
Product Material	Steel

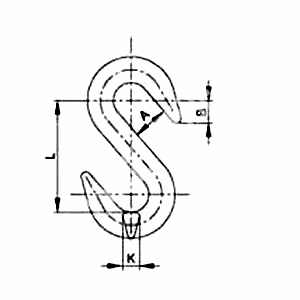

Product No.	Working Load Limit	A	B	K	L	Weight
MHAE0157-SS001	1	25	25	18	86	0.6
MHAE0157-SS002	2	28	23	25	96	1.3
MHAE0157-SS003	3	30	20	28	99	1.5
MHAE0157-SS004	5	44	20	38	129	4.1
MHAE0157-SS005	8	60	20	50	167	9.3
MHAE0157-SS006	10	75	25	55	199	11
Note: 1. Adopted high-quality alloy steel and throughout swaged forging process. 2. Proof loaded at 2 times the Working Load Limit. Minimum Ultimate Load is 4 times the Working Load Limit. 3. Heat Treated. 4. There are signs such as Working Load Limit in the link.
