Marine Pipe Fitting >> Flanges >> ANSI Flanges >> Integral FlangesANSI B16.5 Socket Welding Flange 150lbs
　
Product Name Socket Welding Flange 150lbs
Standard ANSI B16.5

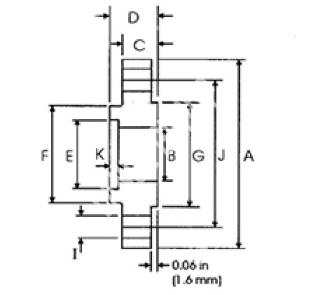

Product No: Pipe Flange Hub Raised Face Drilling Date Weight
Pipe Size Outside Dia. A B C D E K F G No.of Holes I J kg/piece
in mm mm mm mm mm mm mm mm mm mm mm
MFVE614-ANSI01 1/2 21.3 88.9 15.7 11.2 15.7 22.4 9.6 30.2 35.1 4 15.7 60.45 0.42
MFVE614-ANSI02 3/4 26.7 98.8 20.8 12.7 15.7 27.7 11.1 38.1 42.9 4 15.7 69.85 0.59
MFVE614-ANSI03 1 33.4 108 26.7 14.2 17.5 34.5 12.7 49.3 50.8 4 15.7 79.25 0.81
MFVE614-ANSI04 1 1/4 42.2 117.3 35.1 15.7 20.6 43.2 14.2 58.7 62.5 4 15.7 88.9 1.07
MFVE614-ANSI05 1 1/2 48.3 127 40.9 17.5 22.3 49.5 15.7 65 73.15 4 15.7 98.6 1.36
MFVE614-ANSI06 2 60.3 152.4 52.6 19.1 25.4 62 17.5 77.7 91.9 4 19.1 12.7 2.1
MFVE614-ANSI07 2 1/2 73 177.8 62.7 22.4 28.4 74.7 19 90.4 104.6 4 19.1 139.7 3.33
MFVE614-ANSI08 3 88.9 190.5 78 23 30.2 90.7 20.6 108 127 4 19.1 152.4 3.9
Raw Material For Forged Flange
Grade C Si Mn P S Al Ni Cu Cr V Nb Ti
C22.8 0.18-0.23 ≤0.4 0.4-0.9 ≤0.035 ≤0.03 0.015-0.05 ≤0.3 ≤0.03 ≤0.3 　 　 　
P250GH 0.18-0.23 0.2-0.4 0.4-0.9 0.025 0.015 0.015-0.05 ≤0.3 ≤0.03 ≤0.3 0.02 　 　
Q235 0.14-0.22 ≤0.3 0.3-0.65 ≤0.045 ≤0.05 　 　 　 　 　 　 　
Q345D ≤0.18 ≤0.55 1-1.6 ≤0.03 ≤0.03 　 ≤0.03 ≤0.3 ≤0.3 0.02-0.15 0.015-0.06 0.02-0.2
20G 0.17-0.23 0.17-0.37 0.35-0.65 ≤0.035 ≤0.035 　 ≤0.3 ≤0.25 ≤0.25 　 　 　
A105 ≤0.35 0.1-0.35 0.6-1.05 ≤0.035 ≤0.04 　 ≤0.4 ≤0.4 ≤0.3 　 　 　
SS400 ≤0.21 ≤0.3 ≤0.14 ≤0.035 ≤0.035 　 　 　 　 　 　 　
RST37.2 ≤0.17 ≤0.12 ≤1.25 ≤0.035 ≤0.035 　 　 　 　 　 　 　
S235JRG2 ≤0.17 ≤0.12 ≤1.25 ≤0.035 ≤0.035 　 　 　 　 　 　 　
