Product Name Socket Welding Flange 300lbs
Standard ANSI B16.5
Product No: Pipe Flange Hub Raised Face Drilling Date Weight

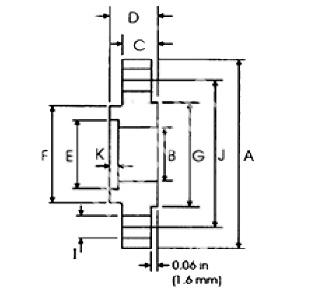

Pipe Size Outside Dia. A B C D E K F G No.of Holes I J kg/piece
in mm mm mm mm mm mm mm mm mm mm mm
MFVE615-ANSI01 1/2 21.3 95.2 15.7 14.2 22.3 22.4 9.6 38.1 35.1 4 15.7 66.55 0.66
MFVE615-ANSI02 3/4 26.7 117.3 20.8 15.7 25.4 27.7 11.1 47.7 42.9 4 19.1 82.5 1.15
MFVE615-ANSI03 1 33.4 123.9 26.7 17.5 26.9 34.5 12.7 53.8 50.8 4 19.1 88.9 1.4
MFVE615-ANSI04 1 1/4 42.2 133.3 35.1 19 26.9 43.2 14.2 63.5 63.5 4 19.1 98.6 1.75
MFVE615-ANSI05 1 1/2 48.3 155.4 40.9 20.6 30.2 49.5 15.7 60.85 73.15 4 22.3 114.3 2.55
MFVE615-ANSI06 2 60.3 165.1 52.6 22.3 33.2 62 17.5 84 91.9 8 19.1 127 2.93
MFVE615-ANSI07 2 1/2 73 190.5 62.7 25.4 38.1 74.7 19 100 104.6 8 22.3 149.3 4.4
MFVE615-ANSI08 3 88.9 209.5 78 28.4 42.9 90.7 20.6 117.3 127 8 22.3 168.1 5.92
Raw Material For Forged Flange
Grade C Si Mn P S Al Ni Cu Cr V Nb Ti
C22.8 0.18-0.23 ≤0.4 0.4-0.9 ≤0.035 ≤0.03 0.015-0.05 ≤0.3 ≤0.03 ≤0.3 　 　 　
P250GH 0.18-0.23 0.2-0.4 0.4-0.9 0.025 0.015 0.015-0.05 ≤0.3 ≤0.03 ≤0.3 0.02 　 　
Q235 0.14-0.22 ≤0.3 0.3-0.65 ≤0.045 ≤0.05 　 　 　 　 　 　 　
Q345D ≤0.18 ≤0.55 1-1.6 ≤0.03 ≤0.03 　 ≤0.03 ≤0.3 ≤0.3 0.02-0.15 0.015-0.06 0.02-0.2
20G 0.17-0.23 0.17-0.37 0.35-0.65 ≤0.035 ≤0.035 　 ≤0.3 ≤0.25 ≤0.25 　 　 　
A105 ≤0.35 0.1-0.35 0.6-1.05 ≤0.035 ≤0.04 　 ≤0.4 ≤0.4 ≤0.3 　 　 　
SS400 ≤0.21 ≤0.3 ≤0.14 ≤0.035 ≤0.035 　 　 　 　 　 　 　
RST37.2 ≤0.17 ≤0.12 ≤1.25 ≤0.035 ≤0.035 　 　 　 　 　 　 　
S235JRG2 ≤0.17 ≤0.12 ≤1.25 ≤0.035 ≤0.035 　 　 　 　 　 　 　
