Product Name Socket Welding Flange 1500lbs
Standard ANSI B16.5
Product No: Pipe Flange Hub Raised Face Drilling Date Weight

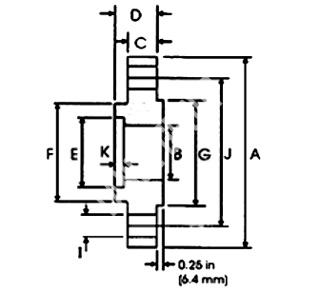

Pipe Size Outside Dia. A B C D E K F G No.of Holes I J kg/piece
in mm mm mm mm mm mm mm mm mm mm mm
MFVE617-ANSI01 1/2 21.3 120.5 specified by the purchaser 22.3 31.7 22.4 9.6 38.1 35.1 4 22.3 82.5 1.8
MFVE617-ANSI02 3/4 26.7 130 25.4 35 27.7 11.1 44.4 42.9 4 22.3 88.9 2.41
MFVE617-ANSI03 1 33.4 149.3 28.4 41.1 34.5 12.7 52.3 50.8 4 25.4 101.6 3.55
MFVE617-ANSI04 1 1/4 42.2 158.7 28.4 41.1 43.2 14.2 63.5 63.5 4 25.4 111.2 4.02
MFVE617-ANSI05 1 1/2 48.3 177.8 31.75 44.5 49.5 15.7 69.85 73.15 4 28.4 123.9 5.45
MFVE617-ANSI06 2 60.3 215.9 38.1 57.15 62 17.5 104.6 91.9 8 25.4 165.1 10.2
MFVE617-ANSI07 2 1/2 73 244.3 41.1 63.5 74.7 19 123.9 104.6 8 28.4 190.5 13.9
Raw Material For Forged Flange
Grade C Si Mn P S Al Ni Cu Cr V Nb Ti
C22.8 0.18-0.23 ≤0.4 0.4-0.9 ≤0.035 ≤0.03 0.015-0.05 ≤0.3 ≤0.03 ≤0.3 　 　 　
P250GH 0.18-0.23 0.2-0.4 0.4-0.9 0.025 0.015 0.015-0.05 ≤0.3 ≤0.03 ≤0.3 0.02 　 　
Q235 0.14-0.22 ≤0.3 0.3-0.65 ≤0.045 ≤0.05 　 　 　 　 　 　 　
Q345D ≤0.18 ≤0.55 1-1.6 ≤0.03 ≤0.03 　 ≤0.03 ≤0.3 ≤0.3 0.02-0.15 0.015-0.06 0.02-0.2
20G 0.17-0.23 0.17-0.37 0.35-0.65 ≤0.035 ≤0.035 　 ≤0.3 ≤0.25 ≤0.25 　 　 　
A105 ≤0.35 0.1-0.35 0.6-1.05 ≤0.035 ≤0.04 　 ≤0.4 ≤0.4 ≤0.3 　 　 　
SS400 ≤0.21 ≤0.3 ≤0.14 ≤0.035 ≤0.035 　 　 　 　 　 　 　
RST37.2 ≤0.17 ≤0.12 ≤1.25 ≤0.035 ≤0.035 　 　 　 　 　 　 　
S235JRG2 ≤0.17 ≤0.12 ≤1.25 ≤0.035 ≤0.035 　 　 　 　 　 　 　
