| Product Name | Double-arm Elevator Link | |||||||||||
| Product Material | Alloy Steel | |||||||||||
|
Product No. |

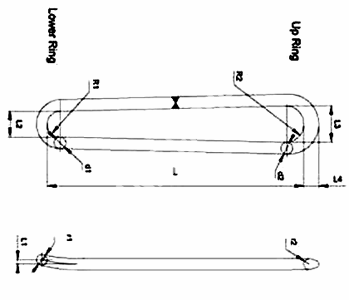

d1 | r1 | R1 | L1 | L2 | d2 | r2 | R2 | L3 | L4 | L | Weight |
|
MHAE044-DA001 |
40 | 20 | 51 | 20 | 102 | 40 | 20 | 51 | 102 | 40 | 1100 | 53 |
|
MHAE044-DA002 |
45 | 22.5 | 51 | 20 | 102 | 53 | 22 | 64 | 128 | 60 | 1100 | 73 |
|
MHAE044-DA003 |
50 | 25 | 51 | 20 | 102 | 55 | 22 | 64 | 128 | 60 | 1200 | 94 |
|
MHAE044-DA004 |
50 | 25 | 60 | 20 | 120 | 60 | 25 | 80 | 160 | 70 | 1500 | 134 |
|
MHAE044-DA005 |
55 | 27.5 | 60 | 25 | 120 | 65 | 27 | 80 | 160 | 75 | 1500 | 160 |
|
MHAE044-DA006 |
65 | 32.5 | 60 | 35 | 120 | 75 | 29 | 85 | 170 | 94 | 1700 | 244 |
| Note: 1. Adopted high-quality alloy steel and throughout swaged forging process. 2. WORKING LOAD LIMIT: 30~150 T. 3. Both ends are shape by swaged forging process; the pole is pulled by open forging. 4. Special Heated Treated. 5. Every link be NDE checking and every link test by 1.5 rate work load before deliver. 6. It is applicable for drilling operation for deep well and super-deep well. | ||||||||||||
