Sling Connectings >> Elevator Links >> HAndle Ring for Water Faucet >> Handle Ring for Water Faucet
Product Name Handle Ring for Water Faucet
Product Material Alloy Steel

Product No.

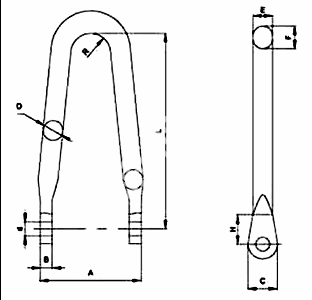

 D A B C d E F H R L Weight
MHAE044-DA1001 114 585 70 170 80 114 130 170 115 1130 220
MHAE044-DA1002 120 680 90 240 90 120 180 250 115 1300 340
MHAE044-DA1003 140 941 120 330 130 165 225 340 115 1480 530
Note:
1. Adopted high-quality alloy steel and throughout swaged forging process.
2. WORKING LOAD LIMIT: 135 ~ 450 T.
3. Handle ring for water faucet shape by free forging.
4. Its strength is verified throughout tensile test 1.5 X WLL
5. There are signs such as WORKING LOAD LIMIT in the link.
