Marine Pipe Fitting >> Flanges >> ANSI Flanges >> Integral FlangesANSI B16.5 Welding Neck Flange 400lbs
  | ||||||||||||||
| Product Name | Welding Neck Flange 400lbs | |||||||||||||
| Standard | ANSI B16.5 | |||||||||||||
| Product No: | Pipe | Flnage Date | Hub Date | Raised Face | Drilling Date | Weight | ||||||||

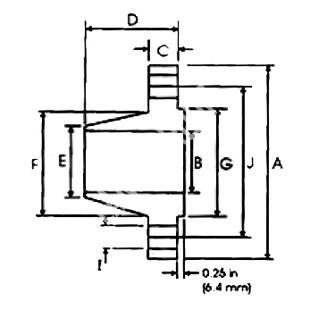

| Pipe Size | Outside Dia. | A | B | C | D | E | F | G | Num.of Holes | I | J | kg/piece | ||
| in | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | ||||
| MFVE620-ANSI01 | 1/2 | 21.3 | 95.3 | specified by purchaser | 14.2 | 52.3 | 21.3 | 38.1 | 35 | 4 | 15.7 | 66.55 | 0.87 | |
| MFVE620-ANSI02 | 3/4 | 26.7 | 117.3 | 15.7 | 57.15 | 26.7 | 47.7 | 42.9 | 4 | 19.1 | 82.6 | 1.45 | ||
| MFVE620-ANSI03 | 1 | 33.4 | 124 | 17.5 | 62 | 33.5 | 53.8 | 50.8 | 4 | 19.1 | 88.9 | 1.76 | ||
| MFVE620-ANSI04 | 1 1/4 | 42.2 | 133.3 | 20.6 | 65.55 | 42.2 | 63.5 | 63.5 | 4 | 19 | 98.5 | 2.49 | ||
| MFVE620-ANSI05 | 1 1/2 | 48.3 | 155.4 | 22.4 | 69.85 | 48.3 | 69.85 | 73.15 | 4 | 22.3 | 114.3 | 3.49 | ||
| MFVE620-ANSI06 | 2 | 60.3 | 165.1 | 25.4 | 73.15 | 60.45 | 84 | 91.9 | 8 | 19 | 127 | 4.36 | ||
| MFVE620-ANSI07 | 2 1/2 | 73 | 190.5 | 28.4 | 79.25 | 73.15 | 100 | 104.6 | 8 | 22.3 | 149.3 | 6.43 | ||
| MFVE620-ANSI08 | 3 | 88.9 | 209.5 | 31.75 | 82.6 | 88.9 | 117.3 | 127 | 8 | 22.3 | 168.1 | 8.53 | ||
| MFVE620-ANSI09 | 3 1/2 | 101.6 | 228.6 | 35.1 | 85.9 | 101.6 | 133.3 | 139.7 | 8 | 25.4 | 184.1 | 10.7 | ||
| MFVE620-ANSI10 | 4 | 114.3 | 254 | 35.1 | 88.9 | 114.3 | 146 | 157.2 | 8 | 25.4 | 200.1 | 12.8 | ||
| MFVE620-ANSI11 | 5 | 141.3 | 279.4 | 38.1 | 101.6 | 141.2 | 177.8 | 185.7 | 8 | 25.4 | 235 | 16.9 | ||
| MFVE620-ANSI12 | 6 | 168.3 | 317.5 | 41.1 | 103.1 | 168.4 | 206.2 | 215.9 | 12 | 25.4 | 269.7 | 22 | ||
| MFVE620-ANSI13 | 8 | 219.1 | 381 | 47.8 | 117.3 | 219.2 | 260.3 | 269.7 | 12 | 28.4 | 330.2 | 34.7 | ||
| MFVE620-ANSI14 | 10 | 273 | 444.5 | 53.8 | 124 | 273 | 320.5 | 323.8 | 16 | 31.75 | 387.3 | 48.5 | ||
| MFVE620-ANSI15 | 12 | 323.8 | 520.7 | 57.15 | 136.7 | 323.8 | 374.6 | 381 | 16 | 35.1 | 450.8 | 69.6 | ||
| MFVE620-ANSI16 | 14 | 355.6 | 584.2 | 60.45 | 149.4 | 355.6 | 425.4 | 412.7 | 20 | 35.1 | 514.3 | 95.5 | ||
| MFVE620-ANSI17 | 16 | 406.4 | 647.7 | 63.5 | 152.4 | 406.4 | 482.6 | 469.9 | 20 | 38.1 | 571.5 | 118 | ||
| MFVE620-ANSI18 | 18 | 457.2 | 711.2 | 66.5 | 165.1 | 457.2 | 533.4 | 533.4 | 24 | 38.1 | 628.6 | 145 | ||
| MFVE620-ANSI19 | 20 | 508 | 774.7 | 69.85 | 168 | 508 | 587.2 | 584.2 | 24 | 41.1 | 685.8 | 173 | ||
| MFVE620-ANSI20 | 24 | 609 | 914.4 | 76.2 | 174.8 | 809.6 | 701.5 | 692.1 | 24 | 47.8 | 812.8 | 249 | ||
| Raw Material For Forged Flange | ||||||||||||||||||||
| Grade | C | Si | Mn | P | S | Al | Ni | Cu | Cr | V | Nb | Ti | ||||||||
| C22.8 | 0.18-0.23 | ≤0.4 | 0.4-0.9 | ≤0.035 | ≤0.03 | 0.015-0.05 | ≤0.3 | ≤0.03 | ≤0.3 | |||||||||||
| P250GH | 0.18-0.23 | 0.2-0.4 | 0.4-0.9 | 0.025 | 0.015 | 0.015-0.05 | ≤0.3 | ≤0.03 | ≤0.3 | 0.02 | ||||||||||
| Q235 | 0.14-0.22 | ≤0.3 | 0.3-0.65 | ≤0.045 | ≤0.05 | |||||||||||||||
| Q345D | ≤0.18 | ≤0.55 | 1-1.6 | ≤0.03 | ≤0.03 | ≤0.03 | ≤0.3 | ≤0.3 | 0.02-0.15 | 0.015-0.06 | 0.02-0.2 | |||||||||
| 20G | 0.17-0.23 | 0.17-0.37 | 0.35-0.65 | ≤0.035 | ≤0.035 | ≤0.3 | ≤0.25 | ≤0.25 | ||||||||||||
| A105 | ≤0.35 | 0.1-0.35 | 0.6-1.05 | ≤0.035 | ≤0.04 | ≤0.4 | ≤0.4 | ≤0.3 | ||||||||||||
| SS400 | ≤0.21 | ≤0.3 | ≤0.14 | ≤0.035 | ≤0.035 | |||||||||||||||
| RST37.2 | ≤0.17 | ≤0.12 | ≤1.25 | ≤0.035 | ≤0.035 | |||||||||||||||
| S235JRG2 | ≤0.17 | ≤0.12 | ≤1.25 | ≤0.035 | ≤0.035 | |||||||||||||||
