Product Name |
Pear Shaped Link | |||||
|
Product Material |
Steel | |||||
|
Product No. |

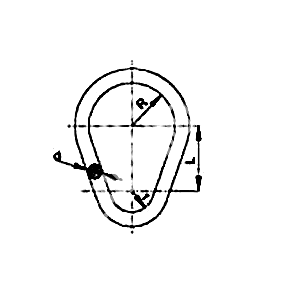

Working Load Limit | d | r | R | L | Weight |
|
MHAE055-PS001 |
3 | 20 | 20 | 60 | 85 | 1.25 |
|
MHAE055-PS002 |
5 | 30 | 25 | 65 | 93 | 3.24 |
|
MHAE055-PS003 |
8 | 33 | 30 | 75 | 100 | 4.42 |
|
MHAE055-PS004 |
10 | 38 | 50 | 80 | 146 | 7.40 |
|
MHAE055-PS005 |
16 | 45 | 50 | 80 | 146 | 10.65 |
| Note: 1. Adopted high-quality alloy steel and throughout swaged forging process. 2. Proof loaded at 2 times the Working Load Limit. Minimum Ultimate Load is 4 times the Working Load Limit. 3. Heat Treated. | ||||||
