Marine Pipe Fitting >> Flanges >> ANSI Flanges >> Integral FlangesANSI B16.5 Welding Neck Flange 2500lbs
  | ||||||||||||||
| Product Name | Welding Neck Flange 2500lbs | |||||||||||||
| Standard | ANSI B16.5 | |||||||||||||
| Product No: | Pipe | Flnage Date | Hub Date | Raised Face | Drilling Date | Weight | ||||||||

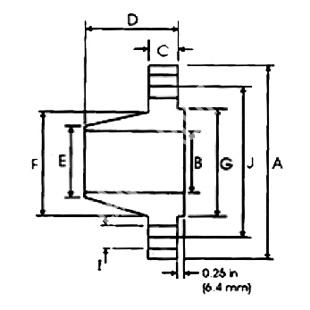

| Pipe Size | Outside Dia. | A | B | C | D | E | F | G | Num.of Holes | I | J | kg/piece | ||
| in | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | ||||
| MFVE623-ANSI01 | 1/2 | 21.3 | 133.4 | specified by purchaser | 30.2 | 73.15 | 21.3 | 42.9 | 35 | 4 | 22.4 | 88.9 | 3.12 | |
| MFVE623-ANSI02 | 3/4 | 26.7 | 139.7 | 31.75 | 79.25 | 26.7 | 50.8 | 42.9 | 4 | 22.4 | 95.3 | 3.7 | ||
| MFVE623-ANSI03 | 1 | 33.4 | 158.8 | 35.1 | 88.9 | 33.5 | 57.15 | 50.8 | 4 | 25.4 | 108 | 5.24 | ||
| MFVE623-ANSI04 | 1 1/4 | 42.2 | 184.2 | 38.1 | 95.3 | 42.2 | 73.15 | 63.5 | 4 | 28.4 | 130 | 7.74 | ||
| MFVE623-ANSI05 | 1 1/2 | 48.3 | 203.2 | 44.5 | 111.3 | 48.3 | 79.25 | 73.15 | 4 | 31.75 | 146.1 | 10.9 | ||
| MFVE623-ANSI06 | 2 | 60.3 | 235 | 50.8 | 127 | 60.45 | 95.3 | 91.9 | 8 | 28.4 | 171.5 | 16.2 | ||
| MFVE623-ANSI07 | 2 1/2 | 73 | 266.7 | 57.15 | 142.7 | 73.15 | 114.3 | 104.6 | 8 | 31.75 | 196.9 | 23.7 | ||
| MFVE623-ANSI08 | 3 | 88.9 | 304.8 | 66.55 | 168.1 | 88.9 | 133.4 | 127 | 8 | 35.1 | 228.6 | 36.2 | ||
| MFVE623-ANSI09 | 4 | 114.3 | 355.6 | 76.2 | 190.5 | 114.3 | 165.1 | 157.2 | 8 | 41.1 | 273.1 | 55.3 | ||
| MFVE623-ANSI10 | 5 | 141.3 | 419.1 | 91.9 | 228.6 | 141.2 | 203.2 | 185.7 | 8 | 47.8 | 323.9 | 92.5 | ||
| MFVE623-ANSI11 | 6 | 168.3 | 482.6 | 108 | 273.1 | 168.4 | 235 | 215.9 | 8 | 53.8 | 368.3 | 143 | ||
| MFVE623-ANSI12 | 8 | 219.1 | 552.5 | 127 | 317.5 | 219.2 | 304.8 | 269.7 | 12 | 53.8 | 438.2 | 215 | ||
| MFVE623-ANSI13 | 10 | 273 | 673.1 | 165.1 | 419.1 | 273 | 374.7 | 323.8 | 12 | 66.55 | 539.8 | 406 | ||
| MFVE623-ANSI14 | 12 | 323.8 | 762 | 164.2 | 463.6 | 323.8 | 441.5 | 381 | 12 | 73.15 | 619.3 | 572 | ||
| Raw Material For Forged Flange | ||||||||||||||||||||
| Grade | C | Si | Mn | P | S | Al | Ni | Cu | Cr | V | Nb | Ti | ||||||||
| C22.8 | 0.18-0.23 | ≤0.4 | 0.4-0.9 | ≤0.035 | ≤0.03 | 0.015-0.05 | ≤0.3 | ≤0.03 | ≤0.3 | |||||||||||
| P250GH | 0.18-0.23 | 0.2-0.4 | 0.4-0.9 | 0.025 | 0.015 | 0.015-0.05 | ≤0.3 | ≤0.03 | ≤0.3 | 0.02 | ||||||||||
| Q235 | 0.14-0.22 | ≤0.3 | 0.3-0.65 | ≤0.045 | ≤0.05 | |||||||||||||||
| Q345D | ≤0.18 | ≤0.55 | 1-1.6 | ≤0.03 | ≤0.03 | ≤0.03 | ≤0.3 | ≤0.3 | 0.02-0.15 | 0.015-0.06 | 0.02-0.2 | |||||||||
| 20G | 0.17-0.23 | 0.17-0.37 | 0.35-0.65 | ≤0.035 | ≤0.035 | ≤0.3 | ≤0.25 | ≤0.25 | ||||||||||||
| A105 | ≤0.35 | 0.1-0.35 | 0.6-1.05 | ≤0.035 | ≤0.04 | ≤0.4 | ≤0.4 | ≤0.3 | ||||||||||||
| SS400 | ≤0.21 | ≤0.3 | ≤0.14 | ≤0.035 | ≤0.035 | |||||||||||||||
| RST37.2 | ≤0.17 | ≤0.12 | ≤1.25 | ≤0.035 | ≤0.035 | |||||||||||||||
| S235JRG2 | ≤0.17 | ≤0.12 | ≤1.25 | ≤0.035 | ≤0.035 | |||||||||||||||
