Marine Pipe Fitting >> Flanges >> ANSI Flanges >> Lap Joint FlangesANSI B16.5 Lap Joint Flange 150lbs
  | |||||||||||||
| Product Name | Lap Joint Flanges 150lbs | ||||||||||||
| Standard | ANSI B16.5 | ||||||||||||
| Product No: | Pipe | Flange Date | Lap | Hub | Drilling Date | Weight | |||||||

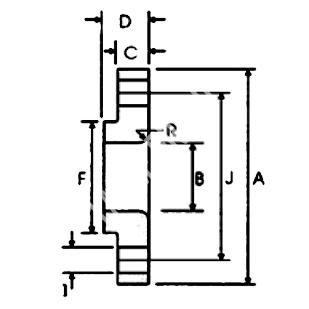

| Pipe Size | Outside Dia. | A | B | C | D | R | F | H | I | J | kg/piece | ||
| in | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | |||
| MFVE624-ANSI01 | 1/2 | 21.3 | 88.9 | 22.9 | 11.2 | 15.7 | 3 | 30.2 | 4 | 15.7 | 60.45 | 0.38 | |
| MFVE624-ANSI02 | 3/4 | 26.7 | 98.6 | 28.2 | 12.7 | 15.7 | 3 | 38.1 | 4 | 15.7 | 69.85 | 0.55 | |
| MFVE624-ANSI03 | 1 | 33.4 | 108 | 35.1 | 14.2 | 17.5 | 3 | 49.3 | 4 | 15.7 | 79.25 | 0.76 | |
| MFVE624-ANSI04 | 1 1/4 | 42.2 | 117.3 | 43.7 | 15.7 | 20.6 | 4.8 | 58.7 | 4 | 15.7 | 88.9 | 1.01 | |
| MFVE624-ANSI05 | 1 1/2 | 48.3 | 127 | 50 | 17.5 | 22.4 | 6.4 | 65 | 4 | 15.7 | 98 | 1.3 | |
| MFVE624-ANSI06 | 2 | 60.3 | 152.4 | 62.5 | 19.1 | 25.4 | 7.9 | 77.7 | 4 | 19.1 | 120.7 | 2.03 | |
| MFVE624-ANSI07 | 2 1/2 | 73 | 177.8 | 75.4 | 22.4 | 28.4 | 7.9 | 90.4 | 4 | 19.1 | 139.7 | 3.25 | |
| MFVE624-ANSI08 | 3 | 88.9 | 190.5 | 91.4 | 23.9 | 30.2 | 9.7 | 108 | 4 | 19.1 | 152.4 | 3.81 | |
| MFVE624-ANSI09 | 3 1/2 | 101.6 | 215.9 | 104.1 | 23.9 | 31.75 | 9.7 | 122.2 | 8 | 19.1 | 177.8 | 4.76 | |
| MFVE624-ANSI10 | 4 | 114.3 | 228.6 | 116.8 | 23.9 | 33.3 | 11.2 | 134.9 | 8 | 19.1 | 190.5 | 5.25 | |
| MFVE624-ANSI11 | 5 | 141.3 | 254 | 114.5 | 23.9 | 36.6 | 11.2 | 163.6 | 8 | 22.4 | 215.9 | 6.02 | |
| MFVE624-ANSI12 | 6 | 168.3 | 279.4 | 171.5 | 25.4 | 39.6 | 12.7 | 192 | 8 | 22.4 | 241.3 | 7.4 | |
| MFVE624-ANSI13 | 8 | 219.1 | 342.9 | 222.3 | 26.4 | 44.5 | 12.7 | 246.1 | 8 | 22.4 | 298.5 | 12.1 | |
| MFVE624-ANSI14 | 10 | 273 | 406.4 | 277.4 | 30.2 | 49.3 | 12.7 | 304.8 | 12 | 25.4 | 362 | 16.4 | |
| MFVE624-ANSI15 | 12 | 323.8 | 482.6 | 328.2 | 31.75 | 55.6 | 12.7 | 365.3 | 12 | 25.4 | 431.8 | 26.1 | |
| MFVE624-ANSI16 | 14 | 355.6 | 533.4 | 360.2 | 35.1 | 79.25 | 12.7 | 400.1 | 12 | 28.4 | 476.3 | 34.5 | |
| MFVE624-ANSI17 | 16 | 406.4 | 596.9 | 411.2 | 36.6 | 87.4 | 12.7 | 457.2 | 16 | 28.4 | 539.8 | 44.6 | |
| MFVE624-ANSI18 | 18 | 457.2 | 635 | 462.3 | 39.5 | 96.8 | 12.7 | 505 | 16 | 31.75 | 577.9 | 48.7 | |
| MFVE624-ANSI19 | 20 | 508 | 698.5 | 514.4 | 42.9 | 103.1 | 12.7 | 558.8 | 20 | 31.75 | 635 | 61.6 | |
| MFVE624-ANSI20 | 24 | 609.6 | 812.8 | 616 | 47.8 | 111.3 | 12.7 | 663.4 | 20 | 35.1 | 749.3 | 86.6 | |
| Raw Material For Forged Flange | |||||||||||||||||||
| Grade | C | Si | Mn | P | S | Al | Ni | Cu | Cr | V | Nb | Ti | |||||||
| C22.8 | 0.18-0.23 | ≤0.4 | 0.4-0.9 | ≤0.035 | ≤0.03 | 0.015-0.05 | ≤0.3 | ≤0.03 | ≤0.3 | ||||||||||
| P250GH | 0.18-0.23 | 0.2-0.4 | 0.4-0.9 | 0.025 | 0.015 | 0.015-0.05 | ≤0.3 | ≤0.03 | ≤0.3 | 0.02 | |||||||||
| Q235 | 0.14-0.22 | ≤0.3 | 0.3-0.65 | ≤0.045 | ≤0.05 | ||||||||||||||
| Q345D | ≤0.18 | ≤0.55 | 1-1.6 | ≤0.03 | ≤0.03 | ≤0.03 | ≤0.3 | ≤0.3 | 0.02-0.15 | 0.015-0.06 | 0.02-0.2 | ||||||||
| 20G | 0.17-0.23 | 0.17-0.37 | 0.35-0.65 | ≤0.035 | ≤0.035 | ≤0.3 | ≤0.25 | ≤0.25 | |||||||||||
| A105 | ≤0.35 | 0.1-0.35 | 0.6-1.05 | ≤0.035 | ≤0.04 | ≤0.4 | ≤0.4 | ≤0.3 | |||||||||||
| SS400 | ≤0.21 | ≤0.3 | ≤0.14 | ≤0.035 | ≤0.035 | ||||||||||||||
| RST37.2 | ≤0.17 | ≤0.12 | ≤1.25 | ≤0.035 | ≤0.035 | ||||||||||||||
| S235JRG2 | ≤0.17 | ≤0.12 | ≤1.25 | ≤0.035 | ≤0.035 | ||||||||||||||
