Marine Pipe Fitting >> Flanges >> ANSI Flanges >> Lap Joint FlangesANSI B16.5 Lap Joint Flange 900lbs

Product Name Lap Joint Flanges 900lbs
Standard ANSI B16.5

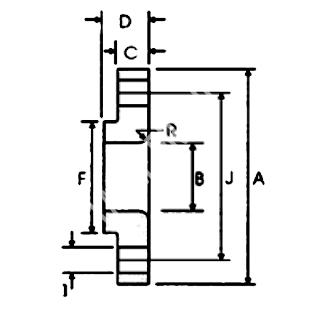

Product No: Pipe Flange Date Lap Hub Drilling Date Weight
Pipe Size Outside Dia. A B C D R F H I J kg/piece
in mm mm mm mm mm mm mm mm mm mm
MFVE627-ANSI01 1/2 21.3 120.6 22.9 22.3 31.7 3 38.1 4 22.3 82.5 1.71
MFVE627-ANSI02 3/4 26.7 130 28.2 25.4 35 3 44.4 4 22.3 88.9 2.3
MFVE627-ANSI03 1 33.4 149.3 35.1 28.4 41.1 3 52.3 4 25.4 101.6 3.4
MFVE627-ANSI04 1 1/4 42.2 158.7 43.7 28.4 41.1 4.8 63.5 4 25.4 111.2 3.85
MFVE627-ANSI05 1 1/2 48.3 177.8 50 31.7 44.4 6.4 69.85 4 28.4 123.9 5.28
MFVE627-ANSI06 2 60.3 215.9 62.5 38.1 57.15 7.9 104.6 8 25.4 165.1 9.78
MFVE627-ANSI07 2 1/2 73 244.3 75.4 41.1 63.5 7.9 123.9 8 28.4 190.5 13.6
MFVE627-ANSI08 3 88.9 241.3 91.4 38.1 53.8 9.7 127 8 25.4 190.5 11.3
MFVE627-ANSI09 4 114.3 292.1 116.8 44.4 69.85 11.2 158.7 8 31.7 234.9 19.2
MFVE627-ANSI10 5 141.3 349.2 114.5 50.8 79.25 11.2 190.5 8 35 279.4 31.2
MFVE627-ANSI11 6 168.3 381 171.5 55.6 85.8 12.7 234.9 12 31.7 317.5 40.5
MFVE627-ANSI12 8 219.1 469.9 222.3 63.5 114.3 12.7 298.4 12 38.1 393.7 71.5
MFVE627-ANSI13 10 273 546.1 277.4 69.85 127 12.7 368.3 16 38.1 469.9 104
MFVE627-ANSI14 12 323.8 609.6 328.2 79.25 142.7 12.7 419.1 20 38.1 533.4 139
MFVE627-ANSI15 14 355.6 641.3 360.2 85.8 155.4 12.7 450.8 20 41.1 558.8 161
MFVE627-ANSI16 16 406.4 704.8 411.2 88.9 165.1 12.7 508 20 44.4 615.9 194
MFVE627-ANSI17 18 457.2 787.4 462.3 101.6 190.5 12.7 585.1 20 50.8 685.8 267
MFVE627-ANSI18 20 508 857.2 514.4 107.9 209.5 12.7 622.3 20 53.8 749.3 334
MFVE627-ANSI19 24 609.6 1041.4 616 139.7 266.7 12.7 749.3 20 66.55 901.7 618
Raw Material For Forged Flange
Grade C Si Mn P S Al Ni Cu Cr V Nb Ti
C22.8 0.18-0.23 ≤0.4 0.4-0.9 ≤0.035 ≤0.03 0.015-0.05 ≤0.3 ≤0.03 ≤0.3
P250GH 0.18-0.23 0.2-0.4 0.4-0.9 0.025 0.015 0.015-0.05 ≤0.3 ≤0.03 ≤0.3 0.02
Q235 0.14-0.22 ≤0.3 0.3-0.65 ≤0.045 ≤0.05
Q345D ≤0.18 ≤0.55 1-1.6 ≤0.03 ≤0.03   ≤0.03 ≤0.3 ≤0.3 0.02-0.15 0.015-0.06 0.02-0.2
20G 0.17-0.23 0.17-0.37 0.35-0.65 ≤0.035 ≤0.035   ≤0.3 ≤0.25 ≤0.25
A105 ≤0.35 0.1-0.35 0.6-1.05 ≤0.035 ≤0.04   ≤0.4 ≤0.4 ≤0.3
SS400 ≤0.21 ≤0.3 ≤0.14 ≤0.035 ≤0.035
RST37.2 ≤0.17 ≤0.12 ≤1.25 ≤0.035 ≤0.035
S235JRG2 ≤0.17 ≤0.12 ≤1.25 ≤0.035 ≤0.035
