Marine Pipe Fitting >> Flanges >> ANSI Flanges >> Threaded FlangesANSI B16.5 Threaded Flange 150lbs
　
Product Name Threaded Flanges 150lbs
Standard ANSI B16.5

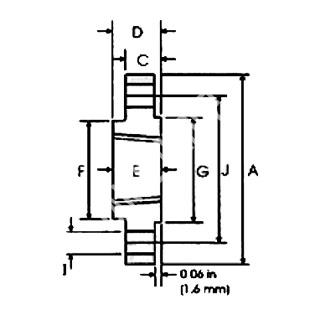

Product No: Pipe Flange Date Hub Raised Face Drilling Date Weight
Pipe Size Outside Dia A C D E F G Num.of Holes I J kg/piece
in mm mm mm mm mm mm mm mm mm
MFVE630-ANSI01 1/2 21.3 88.9 11.2 15.7 15.7 30.2 35.1 4 15.7 60.45 0.39
MFVE630-ANSI02 3/4 26.7 98.6 12.7 15.7 15.7 38.1 42.9 4 15.7 69.85 0.56
MFVE630-ANSI03 1 33.4 108 14.2 17.5 17.5 49.3 50.8 4 15.7 79.25 0.78
MFVE630-ANSI04 1 1/4 42.2 117.3 15.7 20.6 20.6 58.7 63.5 4 15.7 88.9 1.03
MFVE630-ANSI05 1 1/2 48.3 127 17.5 22.4 22.3 65 73.15 4 15.7 98.6 1.32
MFVE630-ANSI06 2 60.3 152.4 19.1 25.4 25.4 77.7 91.9 4 19.1 120.7 2.06
MFVE630-ANSI07 2 1/2 73 177.8 22.4 28.4 28.4 90.4 104.6 4 19.1 139.7 3.28
MFVE630-ANSI08 3 88.9 190.5 23.9 30.2 30.2 108 127 4 19.1 152.4 3.85
MFVE630-ANSI09 3 1/2 101.6 215.9 23.9 31.75 31.75 122.2 139.7 8 19.1 177.8 4.81
MFVE630-ANSI10 4 114.3 228.6 23.9 33.3 33.3 134.9 157.2 8 19.1 190.5 5.3
MFVE630-ANSI11 5 141.3 254 23.9 36.6 36.6 163.6 185.7 8 22.4 215.9 6.07
MFVE630-ANSI12 6 168.3 279.4 25.4 39.6 39.6 192 215.9 8 22.4 241.3 7.45
MFVE630-ANSI13 8 219.1 342.9 28.4 44.5 44.5 246.1 269.7 8 22.4 298.5 12.1
MFVE630-ANSI14 10 273 406.4 30.2 49.3 49.3 304.8 323.9 12 25.4 362 16.5
MFVE630-ANSI15 12 323.8 482.6 31.75 55.6 55.6 365.3 381 12 25.4 431.8 26.2
MFVE630-ANSI16 14 355.6 533.4 35.1 57.15 57.15 400.1 412.7 12 28.4 476.3 34.6
MFVE630-ANSI17 16 406.4 596.9 36.6 63.5 63.5 457.2 469.9 16 28.4 539.8 44.8
MFVE630-ANSI18 18 457.2 635 39.6 68.3 68.6 505 533.4 16 31.75 577.9 48.9
MFVE630-ANSI19 20 508 698.5 42.9 73.15 73.15 558.8 584.2 20 31.75 635 61.9
MFVE630-ANSI20 24 609.6 812.8 47.8 82.6 82.6 663.4 692.2 20 35.1 749.3 86.9
Raw Material For Forged Flange
Grade C Si Mn P S Al Ni Cu Cr V Nb Ti
C22.8 0.18-0.23 ≤0.4 0.4-0.9 ≤0.035 ≤0.03 0.015-0.05 ≤0.3 ≤0.03 ≤0.3 　 　 　
P250GH 0.18-0.23 0.2-0.4 0.4-0.9 0.025 0.015 0.015-0.05 ≤0.3 ≤0.03 ≤0.3 0.02 　 　
Q235 0.14-0.22 ≤0.3 0.3-0.65 ≤0.045 ≤0.05 　 　 　 　 　 　 　
Q345D ≤0.18 ≤0.55 1-1.6 ≤0.03 ≤0.03 　 ≤0.03 ≤0.3 ≤0.3 0.02-0.15 0.015-0.06 0.02-0.2
20G 0.17-0.23 0.17-0.37 0.35-0.65 ≤0.035 ≤0.035 　 ≤0.3 ≤0.25 ≤0.25 　 　 　
A105 ≤0.35 0.1-0.35 0.6-1.05 ≤0.035 ≤0.04 　 ≤0.4 ≤0.4 ≤0.3 　 　 　
SS400 ≤0.21 ≤0.3 ≤0.14 ≤0.035 ≤0.035 　 　 　 　 　 　 　
RST37.2 ≤0.17 ≤0.12 ≤1.25 ≤0.035 ≤0.035 　 　 　 　 　 　 　
S235JRG2 ≤0.17 ≤0.12 ≤1.25 ≤0.035 ≤0.035 　 　 　 　 　 　 　
