| Product Name | Threaded Flanges 900lbs | |||||||||||||
| Standard | ANSI B16.5 | |||||||||||||
| Product No: | Pipe | Flange Date | Hub | Raised Face | Drilling Date | Weight | ||||||||

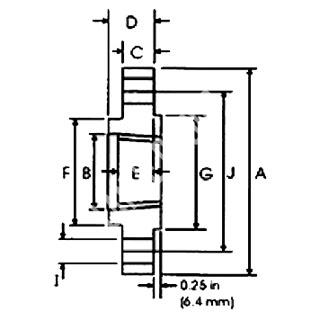

| Pipe Size | Outside Dia | A | B | C | D | E | F | G | Num.of Holes | I | J | kg/piece | ||
| in | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | ||||
| MFVE633-ANSI01 | 1/2 | 21.3 | 120.6 | 23.6 | 22.3 | 31.7 | 22.3 | 38.1 | 35.1 | 4 | 22.3 | 82.5 | 1.74 | |
| MFVE633-ANSI02 | 3/4 | 26.7 | 130 | 29 | 25.4 | 35 | 25.4 | 44.4 | 42.9 | 4 | 22.3 | 88.9 | 2.34 | |
| MFVE633-ANSI03 | 1 | 33.4 | 149.3 | 35.8 | 28.4 | 41.1 | 28.4 | 52.3 | 50.8 | 4 | 25.4 | 101.6 | 3.44 | |
| MFVE633-ANSI04 | 1 1/4 | 42.2 | 158.7 | 44.4 | 28.4 | 41.1 | 30.2 | 63.5 | 63.5 | 4 | 25.4 | 111.2 | 3.91 | |
| MFVE633-ANSI05 | 1 1/2 | 48.3 | 177.8 | 50.5 | 31.7 | 44.5 | 31.7 | 69.85 | 73.15 | 4 | 28.4 | 123.9 | 5.36 | |
| MFVE633-ANSI06 | 2 | 60.3 | 215.9 | 63.5 | 38.1 | 57.15 | 38.1 | 104.6 | 91.9 | 8 | 25.4 | 165.1 | 9.85 | |
| MFVE633-ANSI07 | 2 1/2 | 73 | 244.3 | 76.2 | 41.1 | 63.5 | 47.7 | 123.9 | 104.8 | 8 | 28.4 | 190.5 | 13.7 | |
| MFVE633-ANSI08 | 3 | 88.9 | 241.3 | 92.2 | 38.1 | 53.8 | 41.1 | 127 | 127 | 8 | 25.4 | 190.5 | 11.6 | |
| MFVE633-ANSI09 | 4 | 114.3 | 292.1 | 117.6 | 44.4 | 69.85 | 47.8 | 158.7 | 157.2 | 8 | 31.7 | 234.9 | 19.7 | |
| MFVE633-ANSI10 | 5 | 141.3 | 349.2 | 144.5 | 50.8 | 79.25 | 53.8 | 190.5 | 185.7 | 8 | 35 | 279 | 31.9 | |
| MFVE633-ANSI11 | 6 | 168.3 | 381 | 171.5 | 55.6 | 85.8 | 57.15 | 234.9 | 215.9 | 12 | 31.7 | 317.5 | 41.1 | |
| MFVE633-ANSI12 | 8 | 219.1 | 469.9 | 222.2 | 63.5 | 101.6 | 63.5 | 298.4 | 269.7 | 12 | 38.1 | 393.7 | 70.7 | |
| MFVE633-ANSI13 | 10 | 273 | 546.1 | 276.3 | 69.85 | 107.9 | 71.4 | 368.3 | 323.9 | 16 | 38.1 | 469.9 | 101 | |
| MFVE633-ANSI14 | 12 | 323.8 | 609.6 | 328.7 | 79.4 | 117.3 | 76.2 | 419.1 | 381 | 20 | 38.1 | 533.4 | 133 | |
| MFVE633-ANSI15 | 14 | 355.6 | 641.3 | 360.4 | 85.7 | 130 | 82.5 | 450.8 | 412.7 | 20 | 41.1 | 558.8 | 153 | |
| MFVE633-ANSI16 | 16 | 406.4 | 704.8 | 411.2 | 88.9 | 133.3 | 85.9 | 508 | 469.9 | 20 | 44.4 | 618.9 | 185 | |
| MFVE633-ANSI17 | 18 | 457.2 | 787.4 | 462 | 101.6 | 152.4 | 88.9 | 565.1 | 533.4 | 20 | 50.8 | 885.8 | 258 | |
| MFVE633-ANSI18 | 20 | 508 | 857.2 | 512.8 | 107.9 | 158.7 | 91.9 | 622.3 | 584.2 | 20 | 53.8 | 749.3 | 317 | |
| MFVE633-ANSI19 | 24 | 609.6 | 1041.4 | 614.4 | 139.7 | 203.2 | 101.6 | 749.3 | 692.2 | 20 | 66.55 | 901.7 | 606 | |
| Raw Material For Forged Flange | |||||||||||||||||||
| Grade | C | Si | Mn | P | S | Al | Ni | Cu | Cr | V | Nb | Ti | |||||||
| C22.8 | 0.18-0.23 | ≤0.4 | 0.4-0.9 | ≤0.035 | ≤0.03 | 0.015-0.05 | ≤0.3 | ≤0.03 | ≤0.3 | ||||||||||
| P250GH | 0.18-0.23 | 0.2-0.4 | 0.4-0.9 | 0.025 | 0.015 | 0.015-0.05 | ≤0.3 | ≤0.03 | ≤0.3 | 0.02 | |||||||||
| Q235 | 0.14-0.22 | ≤0.3 | 0.3-0.65 | ≤0.045 | ≤0.05 | ||||||||||||||
| Q345D | ≤0.18 | ≤0.55 | 1-1.6 | ≤0.03 | ≤0.03 | ≤0.03 | ≤0.3 | ≤0.3 | 0.02-0.15 | 0.015-0.06 | 0.02-0.2 | ||||||||
| 20G | 0.17-0.23 | 0.17-0.37 | 0.35-0.65 | ≤0.035 | ≤0.035 | ≤0.3 | ≤0.25 | ≤0.25 | |||||||||||
| A105 | ≤0.35 | 0.1-0.35 | 0.6-1.05 | ≤0.035 | ≤0.04 | ≤0.4 | ≤0.4 | ≤0.3 | |||||||||||
| SS400 | ≤0.21 | ≤0.3 | ≤0.14 | ≤0.035 | ≤0.035 | ||||||||||||||
| RST37.2 | ≤0.17 | ≤0.12 | ≤1.25 | ≤0.035 | ≤0.035 | ||||||||||||||
| S235JRG2 | ≤0.17 | ≤0.12 | ≤1.25 | ≤0.035 | ≤0.035 | ||||||||||||||
