Common-Sling Connectings >> Steel Tie Rod >> Bridge Steel Tie Rods >> Bridge Steel Tie Rods-I1I Type
 |
 | ||
|---|---|---|---|
| Product Name |
Bridge Steel Tie Rods-I1I Type | ||
| Product Material |
Steel | ||

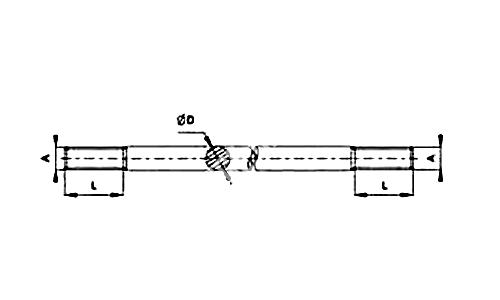

| Product No. | Diameter D | L | A |
| MHAE057-IT001 | 20 | 60 | M20กม2.5 |
| MHAE057-IT002 | 25 | 70 | M24กม3 |
| MHAE057-IT003 | 30 | 85 | M30กม3.5 |
| MHAE057-IT004 | 35 | 100 | M33กม3.5 |
| MHAE057-IT005 | 40 | 110 | M39กม4 |
| MHAE057-IT006 | 45 | 120 | M45กม4.5 |
| MHAE057-IT007 | 50 | 135 | M48กม5 |
| MHAE057-IT008 | 55 | 140 | M52กม5 |
| MHAE057-IT009 | 60 | 145 | M56กม5.5 |
| MHAE057-IT010 | 65 | 150 | M64กม6 |
| MHAE057-IT011 | 70 | 160 | M68กม6 |
| MHAE057-IT012 | 75 | 185 | M72กม6 |
| MHAE057-IT013 | 80 | 200 | M76กม6 |
| MHAE057-IT014 | 85 | 210 | M80กม6 |
| MHAE057-IT015 | 90 | 220 | M85กม6 |
| MHAE057-IT016 | 95 | 285 | M90กม6 |
| MHAE057-IT017 | 100 | 310 | M95กม6 |
| MHAE057-IT018 | 105 | 310 | Tr100กม6 |
| MHAE057-IT019 | 110 | 340 | Tr105กม6 |
| MHAE057-IT020 | 115 | 340 | Tr110กม6 |
| MHAE057-IT021 | 120 | 340 | Tr115กม6 |
| MHAE057-IT022 | 125 | 370 | Tr120กม10 |
| MHAE057-IT023 | 130 | 370 | Tr125กม10 |
| MHAE057-IT024 | 135 | 370 | Tr130กม10 |
| MHAE057-IT025 | 140 | 400 | Tr135กม10 |
| MHAE057-IT026 | 145 | 400 | Tr140กม10 |
| MHAE057-IT027 | 150 | 400 | Tr145กม12 |
| MHAE057-IT028 | 155 | 430 | Tr150กม12 |
| MHAE057-IT029 | 160 | 430 | Tr155กม12 |
| MHAE057-IT030 | 165 | 430 | Tr160กม12 |
| MHAE057-IT031 | 170 | 460 | Tr165กม12 |
| MHAE057-IT032 | 175 | 460 | Tr170กม14 |
| MHAE057-IT033 | 180 | 460 | Tr175กม14 |
| MHAE057-IT034 | 185 | 520 | Tr180กม14 |
| MHAE057-IT035 | 190 | 520 | Tr185กม14 |
| MHAE057-IT036 | 195 | 520 | Tr190กม16 |
| MHAE057-IT037 | 200 | 520 | Tr195กม16 |
| MHAE057-IT038 | 205 | 520 | Tr200กม16 |
| MHAE057-IT039 | 210 | 520 | Tr205กม16 |
| Noteฃบ 1. The O1 type steel tie rod can assemble use With [1]type only need to change the specification of screw thread. 2. The quantity of adjustment sleeve is according to the length of body of rod and adjustment distance. | |||
