Lifting Beams >> HLB Beams
 |
 |
|||||||
|---|---|---|---|---|---|---|---|---|
Product Name |
HLB Beams | |||||||
Product Material |
Steel | |||||||
Product No. |

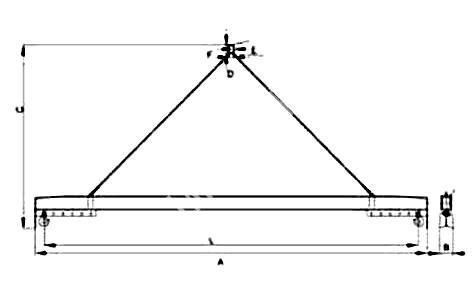

WLL | Adjusting scope | Effect Length | Dimensions | A¡ÁB¡ÁC | Self weight | ||
| D | E | F | ||||||
MHAE018-HB001 |
2 | 1-3 | 3 | 80 | 20 | 150 | 3180¡Á160¡Á1800 | 150 |
MHAE018-HB002 |
3.2 | 3-5 | 5 | 90 | 24 | 160 | 5200¡Á210¡Á2100 | 350 |
MHAE018-HB003 |
5 | 3-5 | 5 | 100 | 28 | 190 | 5300¡Á240¡Á2400 | 430 |
MHAE018-HB004 |
8 | 6-8 | 8 | 110 | 32 | 200 | 8350¡Á250¡Á3800 | 720 |
MHAE018-HB005 |
10 | 6-8 | 8 | 120 | 34 | 230 | 8350¡Á280¡Á3850 | 810 |
MHAE018-HB006 |
12.5 | 6-8 | 8 | 135 | 38 | 250 | 8350¡Á280¡Á3900 | 945 |
MHAE018-HB007 |
16 | 6-8 | 8 | 140 | 42 | 270 | 8350¡Á300¡Á4050 | 1170 |
MHAE018-HB008 |
20 | 6-8 | 8 | 160 | 46 | 310 | 8400¡Á300¡Á4150 | 1475 |
MHAE018-HB009 |
25 | 6-8 | 8 | 180 | 52 | 330 | 8460¡Á380¡Á4300 | 1585 |
MHAE018-HB010 |
32 | 6-10 | 10 | 180 | 56 | 330 | 10500¡Á480¡Á4550 | 2720 |
MHAE018-HB011 |
40 | 6-10 | 10 | 220 | 69 | 396 | 10500¡Á480¡Á4650 | 2790 |
| Note: 1. Structure: ¡°¹¤¡±shaped and streamline form. 2. Parts: Pin, Chain Slings, Eye Hook (swivel Hook). 3. Function and characteristic: According to the dimensions of the load, adjusting the Hook. |
||||||||
