Marine Pipe Fitting >> Flanges >> DIN Flanges >> Integral FlangesDIN2636 Welding Neck Flange PN64

��

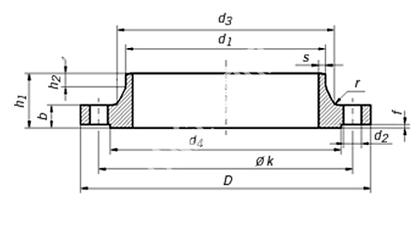

Product Name	Welding Neck Flange PN64
Standard	DIN 2636
Product No:	Pipe			Flange				Neck				Raised face		Screws			Weight of a flange
																	(7,85 Kg/dm3)
	Rated	d1		D	b	k	h1	d3	s	r	h2	d4	f	Number	Thread	d2	Kg
	Diameter	ISO Series 1	DIN Series 2
MFVE613-DIN01	15	-	20	105	20	75	45	32	2	4	6	45	2	4	M 12	14	1.09
		21,3	-					34
MFVE613-DIN02	25	-	30	140	24	100	58	48	2.6	4	8	68	2	4	M16	18	2.66
		33.7	-					52
MFVE613-DIN03	40	-	44.5	170	26	125	62	65	2.9	6	10	88	3	4	M20	22	4.09
		48.3	-					70
MFVE613-DIN04	50	-	57	180	26	135	62	78	2.9	6	10	102	3	4	M20	22	4.55
		60.3	-					82
MFVE613-DIN05	65	76.1	-	205	26	160	68	98	3.2	6	12	122	3	8	M20	22	5.73
MFVE613-DIN06	80	88.9	-	215	28	170	72	112	3.6	8	12	138	3	8	M20	22	6.69
MFVE613-DIN07	100	-	108	250	30	200	78	132	4	8	12	162	3	8	M24	26	9.66
		114.3	-					138
MFVE613-DIN08	125	-	133	295	34	240	88	162	4.5	8	12	188	3	8	M27	30	15.1
		139.7	-					168
MFVE613-DIN09	150	-	159	345	36	280	95	192	5.6	10	12	218	3	8	M30	33	21.9
		168.3	-					202
MFVE613-DIN10	175	193.7	-	375	40	310	105	228	6.3	10	16	260	3	12	M30	33	23.7
		219.1	-	415	42	345	110	256	7.1	10	16	285	3	12	M33	36	34.9
MFVE613-DIN11	250	-	267	470	46	400	125	310	8.8	12	18	345	3	12	M33	36	49.6
		273	-					316
MFVE613-DIN12	300	323.9	-	530	52	460	140	372	11	12	18	410	4	16	M33	36	68.7
MFVE613-DIN13	350	355.6	-	600	56	525	150	420	12.5	12	20	465	4	16	M36	39	94.6
		-	368
MFVE613-DIN14	400	406.4	-	670	60	585	160	475	14.2	12	20	535	4	16	M39	42	124
		-	419

Raw Material For Forged Flange

Grade

C

Si

Mn

P

S

Al

Ni

Cu

Cr

V

Nb

Ti

C22.8

0.18-0.23

��0.4

0.4-0.9

��0.035

��0.03

0.015-0.05

��0.3

��0.03

��0.3

��

��

��

P250GH

0.18-0.23

0.2-0.4

0.4-0.9

0.025

0.015

0.015-0.05

��0.3

��0.03

��0.3

0.02

��

��

Q235

0.14-0.22

��0.3

0.3-0.65

��0.045

��0.05

��

��

��

��

��

��

��

Q345D

��0.18

��0.55

1-1.6

��0.03

��0.03

��

��0.03

��0.3

��0.3

0.02-0.15

0.015-0.06

0.02-0.2

20G

0.17-0.23

0.17-0.37

0.35-0.65

��0.035

��0.035

��

��0.3

��0.25

��0.25

��

��

��

A105

��0.35

0.1-0.35

0.6-1.05

��0.035

��0.04

��

��0.4

��0.4

��0.3

��

��

��

SS400

��0.21

��0.3

��0.14

��0.035

��0.035

��

��

��

��

��

��

��

RST37.2

��0.17

��0.12

��1.25

��0.035

��0.035

��

��

��

��

��

��

��

S235JRG2

��0.17

��0.12

��1.25

��0.035

��0.035

��

��

��

��

��

��

��
