Product Name 2 Point Adjustable Lifting Beam
Product Material Steel

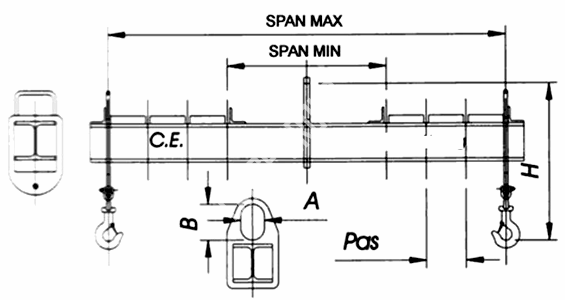

Product No. Options Span max./min. (metres)
SWL A x B Heights and weights (mm) and (kg) 1m/0.4m 2m/1m 3m/1.5m 4m/2m 5m/2.5m 6m/3m
MHAE018-PA001 1 T 60x90 Approximate Height (H) mm 401 439 448 486 505 525
Approximate Weight kg 51 97 136 220 297 398
MHAE018-PA002 2 T 70x100 Approximate Height (H) mm 454 491 531 548 588 608
Approximate Weight kg 59 116 188 260 419 529
MHAE018-PA003 3 T 80x110 Approximate Height (H) mm 516 572 610 650 670 690
Approximate Weight kg 65 146 228 364 469 598
MHAE018-PA004 5 T 90x140 Approximate Height (H) mm 614 671 710 750 790 810
Approximate Weight kg 91 180 275 416 613 767
MHAE018-PA005 8 T 100x160 Approximate Height (H) mm 708 765 825 865 885 915
Approximate Weight kg 129 217 378 546 695 903
MHAE018-PA006 10 T 110x170 Approximate Height (H) mm 786 844 884 924 984 1034
Approximate Weight kg 164 267 398 537 818 1034
Note:
  1. The lifting beams listed below are examples only.
  2. All Lifting beams are made to order and therefore the design and lifting capacity can be modified to suit your individual requirements With 100mm pitch as standard.
