Marine Pipe Fitting >> Flanges >> DIN Flanges >> Threaded FlangesDIN 2565 Threaded Flange PN6
　
Product Name Threaded Flange PN6
Standard DIN 2565

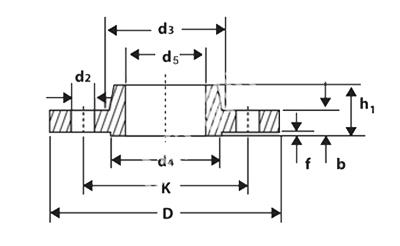

Product No: Rated Diameter d1 Flange Neck Raised face Screws Weight of a flange
(7,85Kg/dm3)
Thread D b k h1 d3 d4 f Number Thread d2 Kg
MFVE609-DIN01 15 21,3 R 1/2 80 12 55 20 30 40 2 4 M 10 11 0,373
MFVE609-DIN02 20 26,9 R 3/4 90 14 65 24 40 50 2 4 M 10 11 0,59
MFVE609-DIN03 25 33,7 R 1 100 14 75 24 50 60 2 4 M 10 11 0,743
MFVE609-DIN04 32 42,4 R 1 1/4 120 14 90 26 60 70 2 4 M 12 14 1,05
MFVE609-DIN05 40 48,3 R 1 1/2 130 14 100 26 70 80 3 4 M 12 14 1,2
MFVE609-DIN06 50 60,3 R 2 140 14 110 28 80 90 3 4 M 12 14 1,37
MFVE609-DIN07 65 76,1 R 2 1/2 160 14 130 32 100 110 3 4 M 12 14 1,92
MFVE609-DIN08 80 88,9 R 3 190 16 150 34 110 128 3 4 M 16 18 2,82
MFVE609-DIN09 100 114,3 R 4 210 16 170 38 130 148 3 4 M 16 18 3,19
MFVE609-DIN10 125 139,7 R 5 240 18 200 40 160 178 3 8 M 16 18 4,47
MFVE609-DIN11 150 165,1 R 6 265 18 225 44 185 202 3 8 M 16 18 5,3
Raw Material For Forged Flange
Grade C Si Mn P S Al Ni Cu Cr V Nb Ti
C22.8 0.18-0.23 ≤0.4 0.4-0.9 ≤0.035 ≤0.03 0.015-0.05 ≤0.3 ≤0.03 ≤0.3 　 　 　
P250GH 0.18-0.23 0.2-0.4 0.4-0.9 0.025 0.015 0.015-0.05 ≤0.3 ≤0.03 ≤0.3 0.02 　 　
Q235 0.14-0.22 ≤0.3 0.3-0.65 ≤0.045 ≤0.05 　 　 　 　 　 　 　
Q345D ≤0.18 ≤0.55 1-1.6 ≤0.03 ≤0.03 　 ≤0.03 ≤0.3 ≤0.3 0.02-0.15 0.015-0.06 0.02-0.2
20G 0.17-0.23 0.17-0.37 0.35-0.65 ≤0.035 ≤0.035 　 ≤0.3 ≤0.25 ≤0.25 　 　 　
A105 ≤0.35 0.1-0.35 0.6-1.05 ≤0.035 ≤0.04 　 ≤0.4 ≤0.4 ≤0.3 　 　 　
SS400 ≤0.21 ≤0.3 ≤0.14 ≤0.035 ≤0.035 　 　 　 　 　 　 　
RST37.2 ≤0.17 ≤0.12 ≤1.25 ≤0.035 ≤0.035 　 　 　 　 　 　 　
S235JRG2 ≤0.17 ≤0.12 ≤1.25 ≤0.035 ≤0.035 　 　 　 　 　 　 　
