Clamps >> Adjusting Beam Clamps With Lifting Shackle
 |
 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
|
Product Name |
Adjusting Beam Clamps With Lifting Shackle | ||||||||||
|
Product Material |
Steel | ||||||||||
|
Product No: |

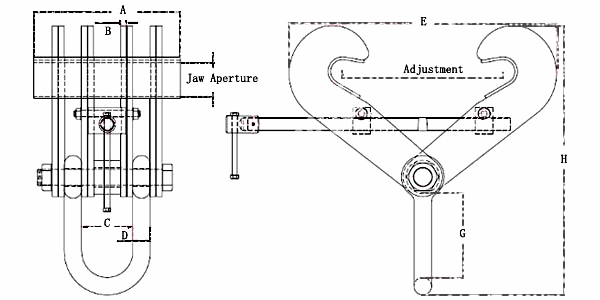

Capacity | Adjust | Jaw Aperture | Dimensions | Weight | ||||||
| A | B | C | D | E | G | H | |||||
| kg | mm | mm | mm | mm | mm | mm | mm | mm | mm | kg | |
|
MHAE0171-AB001 |
20000 | 203 - 457 | 51 | 335 | 12.5 | 116 | 40 | 756 | 185 | 616 | 65.5 |
|
MHAE0171-AB002 |
20000 | 406 - 610 | 63 | 350 | 12.5 | 116 | 40 | 795 | 185 | 673 | 77 |
|
MHAE0171-AB003 |
25000 | 203 - 457 | 51 | 335 | 15 | 130 | 45 | 611 | 192 | 621 | 75.5 |
|
MHAE0171-AB004 |
25000 | 406 - 610 | 63 | 350 | 15 | 130 | 45 | 795 | 185 | 678 | 90 |
|
MHAE0171-AB005 |
30000 | 203 - 457 | 63 | 350 | 20 | 130 | 45 | 624 | 185 | 626 | 92 |
|
MHAE0171-AB006 |
30000 | 406 - 610 | 76 | 350 | 20 | 130 | 45 | 785 | 185 | 691 | 107 |
