Marine Pipe Fitting >> Flanges >> DIN Flanges >> Threaded FlangesDIN 2566 Threaded Flange PN10
　
Product Name Threaded Flange PN10
Standard DIN 2566

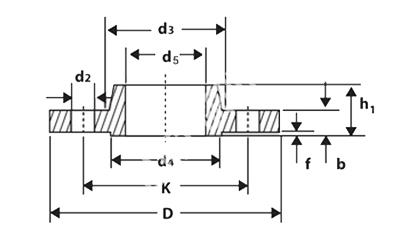

Product No: Rated Diameter d1 Flange Neck Raised face Screws Weight of a flange
(7,85Kg/dm3)
Thread D b k h1 d3 d4 f Number Thread d2 Kg
MFVE610-DIN01 15 21,3 R 1/2 95 14 65 20 35 45 2 4 M 12 14 0,613
MFVE610-DIN02 20 26,9 R 3/4 105 16 75 24 45 58 2 4 M 12 14 0,91
MFVE610-DIN03 25 33,7 R 1 115 16 85 24 52 68 2 4 M 12 14 1,1
MFVE610-DIN04 32 42,4 R 1 1/4 140 16 100 26 60 78 2 4 M 16 18 1,6
MFVE610-DIN05 40 48,3 R 1 1/2 150 16 110 26 70 88 3 4 M 16 18 1,78
MFVE610-DIN06 50 60,3 R 2 165 18 125 28 85 102 3 4 M 16 18 2,43
MFVE610-DIN07 65 76,1 R 2 1/2 185 18 145 32 105 122 3 4 M 16 18 3,18
MFVE610-DIN08 80 88,9 R 3 200 20 160 34 118 138 3 8 M 16 18 4,12
MFVE610-DIN09 100 114,3 R 4 220 20 180 38 140 158 3 8 M 16 18 4,47
MFVE610-DIN10 125 139,7 R 5 250 22 210 40 168 188 3 8 M 16 18 6,13
MFVE610-DIN11 150 165,1 R 6 285 22 240 44 195 212 3 8 M 20 22 7,92
Raw Material For Forged Flange
Grade C Si Mn P S Al Ni Cu Cr V Nb Ti
C22.8 0.18-0.23 ≤0.4 0.4-0.9 ≤0.035 ≤0.03 0.015-0.05 ≤0.3 ≤0.03 ≤0.3 　 　 　
P250GH 0.18-0.23 0.2-0.4 0.4-0.9 0.025 0.015 0.015-0.05 ≤0.3 ≤0.03 ≤0.3 0.02 　 　
Q235 0.14-0.22 ≤0.3 0.3-0.65 ≤0.045 ≤0.05 　 　 　 　 　 　 　
Q345D ≤0.18 ≤0.55 1-1.6 ≤0.03 ≤0.03 　 ≤0.03 ≤0.3 ≤0.3 0.02-0.15 0.015-0.06 0.02-0.2
20G 0.17-0.23 0.17-0.37 0.35-0.65 ≤0.035 ≤0.035 　 ≤0.3 ≤0.25 ≤0.25 　 　 　
A105 ≤0.35 0.1-0.35 0.6-1.05 ≤0.035 ≤0.04 　 ≤0.4 ≤0.4 ≤0.3 　 　 　
SS400 ≤0.21 ≤0.3 ≤0.14 ≤0.035 ≤0.035 　 　 　 　 　 　 　
RST37.2 ≤0.17 ≤0.12 ≤1.25 ≤0.035 ≤0.035 　 　 　 　 　 　 　
S235JRG2 ≤0.17 ≤0.12 ≤1.25 ≤0.035 ≤0.035 　 　 　 　 　 　 　
