Clamps >> Horizontal Lifting Clamp
 |
 | ||||||
|---|---|---|---|---|---|---|---|
|
Product Name |
Horizontal Lifting Clamp | ||||||
|
Product Material |
Steel | ||||||
|
Product No. |

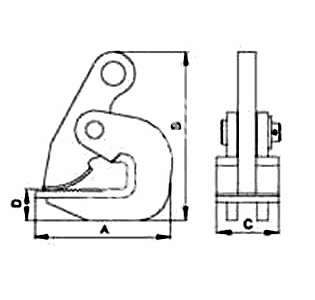

WLL/PAIR | STEEL PLATE | A | B | C | D | WEIGHT |
|
MHAE171-HL001 |
2 | 0～20 | 127 | 156 | 56 | 29 | 2.12 |
|
MHAE171-HL002 |
3 | 0～30 | 152 | 190 | 64 | 31 | 3.4 |
|
MHAE171-HL003 |
5 | 20～60 | 220 | 293 | 70 | 54 | 8.5 |
|
MHAE171-HL004 |
8 | 50～100 | 277 | 375 | 86 | 59 | 16.2 |
|
MHAE171-HL005 |
10 | 60～125 | 296 | 421 | 86 | 66 | 20.2 |
| Note: 1. Using For Lifting Steel Plate Levelly 2. Wll Refers To The Hanging Clamp When Used In Pairs To Allow Lifting Of The Maximum Load. 3. Please Add Balance Beam When The Steel Plate Is Longer. 4. The Proof Load Is 2 Times Working Load Limit; The Breaking Load Is 4 Times Working Load Limit. 5. Please Read The Product Specification Carefully Before Using It. | |||||||
