Clamps >> Pipe Hooks With Lifting Shackle Clamp
 |
 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Product Name | Pipe Hooks With Lifting Shackle Clamp | ||||||||||
| Product Material | Steel | ||||||||||
| Product No: | Capacity (per pair) kg | Max Pipe Wall Thickness | Dimensions (mm) | Weight (kg) | |||||||

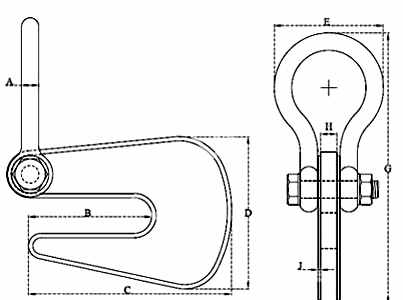

| A | B | C | D | E | G | H | J | ||||
| MHAE171-PC001 | 1000 | 25mm | 16 | 134 | 206 | 144 | 98 | 223 | 15 | - | 6 |
| MHAE171-PC002 | 2000 | 30mm | 16 | 137 | 214 | 159 | 98 | 223 | 20 | - | 8 |
| MHAE171-PC003 | 4000 | 40mm | 20 | 142 | 235 | 176 | 126 | 312 | 25 | - | 15 |
| MHAE171-PC0004 | 6000 | 50mm | 25 | 186 | 316 | 229 | 117 | 307 | 20 | 10 | 17.5 |
| MHAE171-PC005 | 8000 | 70mm | 25 | 218 | 373 | 301 | 117 | 376 | 20 | 10 | 26 |
