Marine Pipe Fitting >> Flanges >> DIN Flanges >> Integral FlangesDIN 86029 Slip-On Welding Flange
　
Product Name Hubbed Slip-On Flange For Welding
Standard DIN 86029

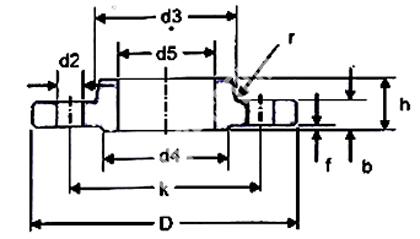

Product No: DN Pipe D d5 b K h d3 r d4 f No. of holes d2 KG
MFVE626-DIN01 10 17.2 90 17.7 14 60 20 30 4 40 2 4 14 0.56
MFVE626-DIN02 15 21.3 95 22 14 65 20 35 4 45 2 4 14 0.62
MFVE626-DIN03 20 26.9 105 27.6 16 75 24 45 4 58 2 4 14 0.91
MFVE626-DIN04 25 33.7 115 34.4 16 85 24 52 5 68 2 4 14 1.09
MFVE626-DIN05 32 42.4 140 43.1 16 100 26 60 5 78 2 4 18 1.58
MFVE626-DIN06 40 48.3 150 49 16 110 26 70 5 88 3 4 18 1.76
MFVE626-DIN07 50 60.3 165 61.1 18 125 28 85 5 102 3 4 18 2.39
MFVE626-DIN08 65 76.1 185 77.1 18 145 32 105 5 122 3 4 18 3.1
MFVE626-DIN09 80 88.9 200 90.3 20 160 34 118 5 138 3 8 18 3.77
MFVE626-DIN10 100 114.3 220 115.9 20 180 38 140 5 158 3 8 18 4.29
MFVE626-DIN11 125 139.7 250 141.6 22 210 40 168 5 188 3 8 18 5.86
MFVE626-DIN12 150 168.3 285 170.5 22 240 44 196 5 212 3 8 22 7.22
MFVE626-DIN13 175 193.7 315 196.1 24 270 44 224 6 242 3 8 22 9.18
MFVE626-DIN14 200 219.4 340 222 24 295 44 247 6 268 3 8 22 9.95
MFVE626-DIN15 250 273 395 276 26 350 46 300 6 320 3 12 22 12.69
MFVE626-DIN16 300 323.9 445 327 26 400 46 352 6 370 4 12 22 14.4
MFVE626-DIN17 350 355.6 505 359 26 460 53 398 10 430 4 16 22 22.36
MFVE626-DIN18 400 406.4 565 410 26 515 57 448 10 482 4 16 26 26.85
MFVE626-DIN19 450 457 615 461 28 565 62 502 10 532 4 20 26 32.53
MFVE626-DIN20 500 508 670 512 28 620 67 552 10 585 4 20 26 37.84
MFVE626-DIN21 600 610 780 614 28 725 75 658 10 685 5 20 30 49.32
MFVE626-DIN22 700 711 895 716 30 840 77 760 10 800 5 24 30 63.86
MFVE626-DIN23 800 813 1015 818 32 950 84 864 10 905 5 24 33 85.19
MFVE626-DIN24 900 914 1115 920 34 1050 88 969 10 1005 5 28 33 101.36
MFVE626-DIN25 1000 1016 1230 1022 34 1160 92 1071 10 1110 5 28 36 119.72
Raw Material For Forged Flange
Grade C Si Mn P S Al Ni Cu Cr V Nb Ti
C22.8 0.18-0.23 ≤0.4 0.4-0.9 ≤0.035 ≤0.03 0.015-0.05 ≤0.3 ≤0.03 ≤0.3 　 　 　
P250GH 0.18-0.23 0.2-0.4 0.4-0.9 0.025 0.015 0.015-0.05 ≤0.3 ≤0.03 ≤0.3 0.02 　 　
Q235 0.14-0.22 ≤0.3 0.3-0.65 ≤0.045 ≤0.05 　 　 　 　 　 　 　
Q345D ≤0.18 ≤0.55 1-1.6 ≤0.03 ≤0.03 　 ≤0.03 ≤0.3 ≤0.3 0.02-0.15 0.015-0.06 0.02-0.2
20G 0.17-0.23 0.17-0.37 0.35-0.65 ≤0.035 ≤0.035 　 ≤0.3 ≤0.25 ≤0.25 　 　 　
A105 ≤0.35 0.1-0.35 0.6-1.05 ≤0.035 ≤0.04 　 ≤0.4 ≤0.4 ≤0.3 　 　 　
SS400 ≤0.21 ≤0.3 ≤0.14 ≤0.035 ≤0.035 　 　 　 　 　 　 　
RST37.2 ≤0.17 ≤0.12 ≤1.25 ≤0.035 ≤0.035 　 　 　 　 　 　 　
S235JRG2 ≤0.17 ≤0.12 ≤1.25 ≤0.035 ≤0.035 　 　 　 　 　 　 　
