Lifting Grabs >> Plate Grab >> Pendent Axis Type Single-Hanging Ears Slab Grab >> Pendent axis–type Single-hanging ears Slab Clamp
 |
 | ||||||

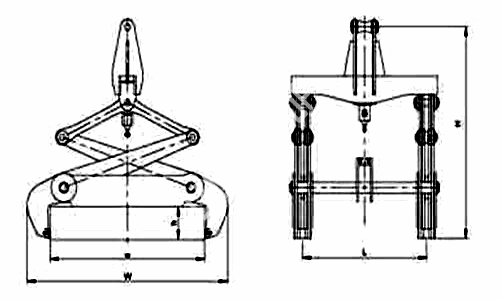

| Product Name | Pendent axis–type Single-hanging ears Slab Clamp | ||||||
| Product Material | Steel | ||||||
| Product No. | WLL | Score of application | Basic High-leg | Span | Max Overall Size | Weight | |
| W | H | ||||||
| MHAE019-PA001 | 16 | 1850-2500 | 450 | 2000 | 3400 | 4600 | 7500 |
| MHAE019-PA002 | 20 | 1200-2300 | 300 | 1800 | 4800 | 6500 | 8000 |
| MHAE019-PA003 | 20 | 2450-3250 | 450 | 2000 | 4300 | 5800 | 10500 |
| Note: 1. Use of leverage working principle, simple structure and flexible action, the lift is Safe and reliable. 2. Without any external force by self-locking, the closed-positioning the realization of automatic shut up the work of opening and closing. 3. The sling used to single-hook hoisting lane. | |||||||
