Lifting Grabs >> Plate Grab >> Pendent Axis Type Doble-Hanging Ears Slab Grab >> Pendent axis–type Double-hanging ears Slab Clamp
 |
 | |||||||
| Product Name | Pendent axis–type Double-hanging ears Slab Clamp | |||||||
| Product Material | Steel | |||||||

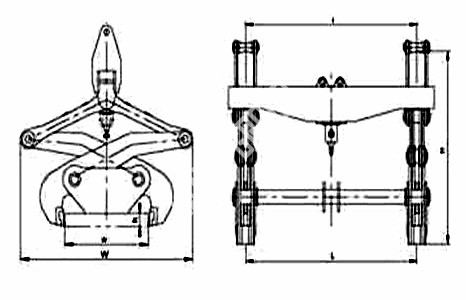

| Product No. | WLL | Score of application | Basic High-leg | Ear space | Span | Max Overall Size | Weight | |
| W | H | |||||||
| MHAE019-PT001 | 12.5 | 235-800 | 300 | 2500 | 2500 | 1700 | 3000 | 3000 |
| MHAE019-PT002 | 20 | 1650-2100 | 300 | 2000 | 2000 | 2900 | 2200 | 6200 |
| MHAE019-PT003 | 32 | 750-1400 | 450 | 3200 | 5000 | 2800 | 4200 | 10000 |
| MHAE019-PT004 | 40 | 850-1600 | 450 | 3200 | 3200 | 3500 | 4900 | 12000 |
| Note: 1. Use of leverage working principle, simple structure and flexible action, the lift is Safe and reliable. 2. Without any external force by self-locking, the closed-positioning the realization of automatic shut up the work of opening and closing. 3. The sling used to double-hook hoisting lane. | ||||||||
