Lifting Grabs >> Plate Grab >> Pendent Axis Type 3-hanging Ears Slab Clamp >> Pendent axis–type 3-hanging ears Slab Clamp
Product Name Pendent axis–type 3-hanging ears Slab Clamp
Product Material Steel

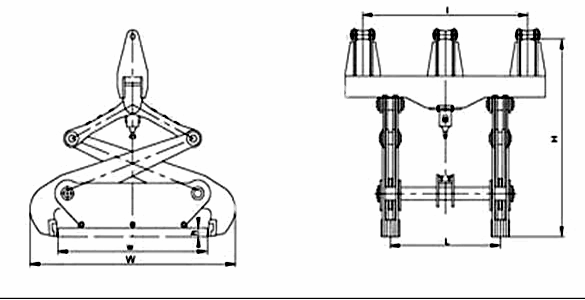

Product No. WLL Score of application Basic High-leg Ear space Span Max Overall Size Weight
W H
MHAE019-PH001 25 600-1400 300 2400 2400 2950 4500 6800
MHAE019-PH002 32 1850-2500 450 3000 4000 3500 4500 11500

Note:
1. Use of leverage working principle, simple structure and flexible action, the lift is Safe and reliable.
2. Without any external force by self-locking, the closed-positioning the realization of automatic shut up the work of opening and closing.
3. The sling used to single or double-hook hoisting lane.
