Marine Fire Suppression System >> Parts >> Foam Equipments >> Fixed Foam EquipmentsBalanced Pressure Foam Proportioning Equipment
 |
 |
||
| Product name | Balanced Pressure Foam Proportioning Equipment | ||
| produt No | MFFE018-PHP | ||
| Description | |||

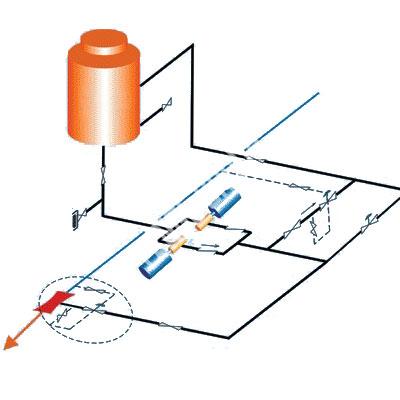

| PHP is an independent proportioning system that automatically adjusts by flow water and pressure. Generally, it is installed near the foam tank and be connected with foam tank, fire fighting pressed water source and foam producing equipment by pipe. | |||
| When fire occurs, foam pump starts to draw the foam from the foam tankinto proportioner pipe.After adjustment by pressure balancing valve and proportioner, certain amount of foam will be immited into pressed water that flows through the proportioner and foam concentrate and then the concentrate will flow to foam producing equipment,such as foam nozzle, foam monitor, and so on. Finally, foam is produced to put out fire. | |||
| Type | PHP100 | PHP150 | PHYP200 |
| mixture flow range(L/S) | 24-100 | 40-150 | 64-200 |
| Equipment inlet&outlet diameter(mm) | 100 | 150 | 200 |
| pressure loss(Mpa) | ¡Ü0.02 | ¡Ü0.02 | ¡Ü0.02 |
