Lifting Grabs >> Round Steel Grab >> Round Steel Grab
 |
 | |||
|---|---|---|---|---|
|
Product Name |

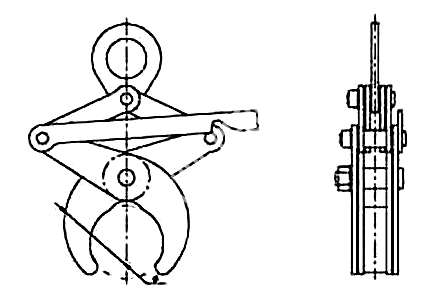

Round Steel Grab | |||
|
Product Material |
Steel | |||
|
Product No. |
WLL | Scope of application Φ | Open design | Weight |
|
MHAE019-RC001 |
1 | Φ50-Φ100 | 105 | 6.5 |
| Φ100-Φ160 | 170 | 16 | ||
|
MHAE019-RC002 |
2 | Φ80-Φ130 | 145 | 19 |
| Φ100-Φ200 | 210 | 33 | ||
|
MHAE019-RC003 |
3 | Φ120-Φ220 | 240 | 56 |
| Φ160-Φ250 | 270 | 58 | ||
|
MHAE019-RC004 |
5 | Φ200-Φ320 | 340 | 115 |
| Φ250-Φ400 | 440 | 140 | ||
|
MHAE019-RC005 |
6 | Φ300-Φ500 | 530 | 170 |
| Note: 1. Spreader bar in gripping central spreader manual control switch, lifting the level of round steel. 2. Uses level transport of round steel. | ||||
