Product Name Vertical Lifting Rolling Plate Clamp(Endless Wire Rope Sling Type)
Product Material Steel
Product No. WLL Steel volume inside diameter Score of application

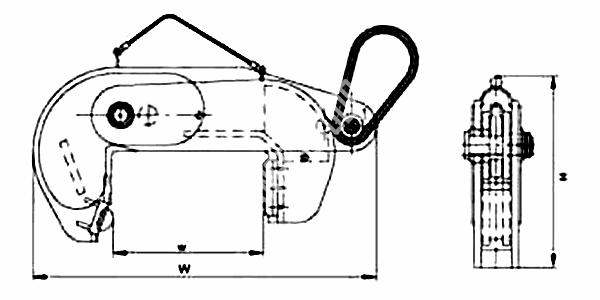

w		 Max? Overall Size Weight
W H
MHAE019-VL001 12.5 Φ500 200-400 1300 2600 800
MHAE019-VL002 16 Φ500 250-600 1500 2700 900
MHAE019-VL003 32 Φ550 550-750 1900 2600 1200
MHAE019-VL004 32 Φ760 350-650 1900 2800 1600

Note：
Apply to setting up the volume the hoisting, hoists up the position depending on the replacement to complete hoisting mechanisms'open and close.
