Vertical Lifting Rolling Plate Clamp(Brace Rld Type),Vertical Lifting-Brace Rld Type,Round Steel Grab,Lifting Grabs -Product Details

Lifting Grabs >> Round Steel Grab >> Vertical Lifting-Brace Rld Type >> Vertical Lifting Rolling Plate Clamp(Brace Rld Type)


Product Name	Vertical Lifting Rolling Plate Clamp(Brace Rld Type)
Product Material	Steel

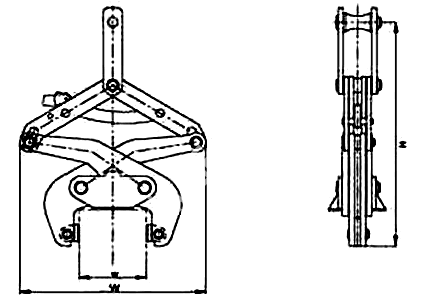

Product No.	WLL	Steel volume inside Min. Dia.	Score of application w	Max Overall Size		Weight
				W	H
MHAE019-NR001	6	Φ450	400-500	2200	2400	850
MHAE019-NR002	20	Φ450	150-450	2200	3100	1500
MHAE019-NR003	32	Φ450	350-700	2250	3050	2300
Note: 1. Filing applied to the lifting, using automatic averaged working principle, its structure is simple and reasonable, The movement is flexible transports safely reliable. 2.Does not provide any force to be derived from the re-locking, the closed-positioning the realization of automatic shut up the opening and closing movements.
