Marine Fire Suppression System >> Parts >> Foam Equipments >> Portable Foam EquipmentsFixed Fire Monitor
 |
 |
|

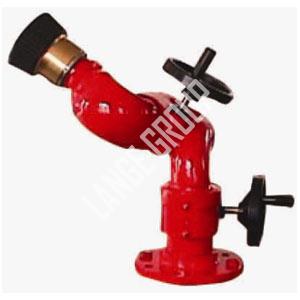

| Product name: | Fixed Fire Monitor | |
| Product No. | MFFE005-FM004 | |
| Descriptions: | Produced on requirement | |
| Effective capacity: | 4000L/min | |
| The max pressure: | 16bar | |
| Inlet | Flange DN80 PN16 | |
| Outlet | Screw thread | |
| optional inlet flange: | DN80 PN16/ ANSI3" | |
| rotation range | ||
| Horizontal: | 360℃ | |
| Vertical: | +85℃~ -75℃ | |
| Weight: | ~25Kg | |
| Materials: | ||
| Nody: | Stainless Steel/Carbon steel/Anti-corrosion aluminum alloy | |
| Sealing: | NBR | |
| Pipe: | Hard aluminum alloy | |
| Flange: | Stainless Steel/Carbon steel/Anti-corrosion aluminum alloy | |
| Painting: | Red RAL3000 | |
| The manitor can be arrested in any horizontal or vertical position. | ||
