Marine Pipe Fitting >> Flanges >> JIS Flanges >> Integral FlangesJIS B2220 Socket Welding Flange Flat Face 20k

��
Product Name		Socket Welding Flange Flat Face 20K
Standard		JIS B2220

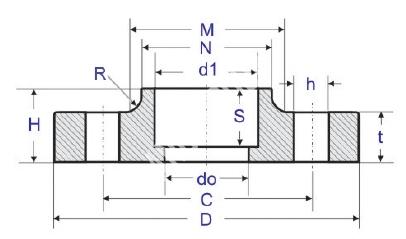

Product NO:		Pipe Size		D	C	h	No.of Holes		d1	do	S	t	N	M	H	R
		A
		in	mm
MFVE624-JIS01		3/8	10	90	65	15	4		12.7	17.8	10	14	30	32	20	4
MFVE624-JIS02		1/2	15	95	70	15	4		16.1	22.2	10	14	34	36	20	4
MFVE624-JIS03		3/4	20	100	75	15	4		21.4	27.7	13	16	40	42	22	4
MFVE624-JIS04		1	25	125	90	19	4		27.2	34.5	13	16	48	50	24	4
MFVE624-JIS05		1 1/4	32	135	100	19	4		35.5	43.2	13	18	56	60	26	5
MFVE624-JIS06		1 1/2	40	140	105	19	4		41.2	49.1	13	18	62	66	26	5
MFVE624-JIS07		2	50	155	120	19	8		52.7	61.1	16	18	76	80	26	5
MFVE624-JIS08		2 1/2	65	175	140	19	8		65.9	77.1	16	20	100	104	30	5
MFVE624-JIS09		3	80	200	160	23	8		78.1	90	16	22	113	117	34	6
