Marine Fire Suppression System >> Parts >> Fire Hoses >> TPU Lining Fire HoseDouble Jacket TPU Lining Fire Hose
 |
 |
|||||
| Product name | Double Jacket TPU Lining Fire Hose | |||||
| Product No. | MFFE003-DJPU | |||||
| Feature | ||||||
| Double Jacket: the weave jacket is made of 100% polyester staple and polyester filaments or polyester filaments. Jacket is plain or twill weaves.It resists high pressure.Lining is used the imported TPU with Germany first techniques.Special adhesion is used between the jacket and the lining.Character: light,resisting abrasion,aging,Ozone, Better resisting oil. |
||||||
| I.D.(Inch/mm) |
Working Pressure (Bar/Psi) |
Burst Pressure (Bar/Psi) |
Certification | |||
| 1" | 25 | 2.0/20/300,2.5/25/370,3.0/30/450 | 6.0/60/900, 7.5/75/1100, 9.0/90/1300 | - | ||
| 1-1/2" | 38 | 2.0/20/300,2.5/25/370,3.0/30/450 | 6.0/60/900,7.5/75/1100,9.0/90/1300 | - | ||
| 1-3/4" | 45 | 2.0/20/300,2.5/25/370,3.0/30/450 | 6.0/60/900,7.5/75/1100,9.0/90/1300 | - | ||
| 2" | 52 | 2.0/20/300,2.5/25/370,3.0/30/450 | 6.0/60/900,7.5/75/1100,9.0/90/1300 | - | ||
| 2-1/2" | 65 | 2.0/20/300,2.5/25/370,3.0/30/450 | 6.0/60/900,7.5/75/1100,9.0/90/1300 | - | ||
| Application | Industrial and municipal fire brigades Military Marine fire fighting Interior rack and reel hose Commercial and civil engineering |
|||||
| Couplings available | Storz& John Morris & Italy & Machino & Nakajima couplings and other type on your request. | |||||

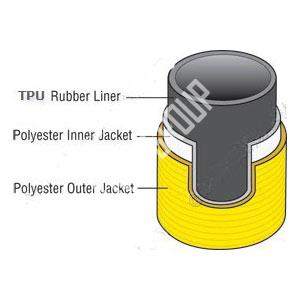

| Construction | High tenacity filament polyester or nylon filament as warp and weft, TPU liner | |||||
