Marine Fire Suppression System >> Parts >> Fire Hoses >> Rubber Lining Fire HoseDouble Jacket Natural Rubber Lining Hose
 |
 |
|||||
| Product name | Double Jacket Natural Rubber Lining Hose | |||||
| Product No. | MFFE003-DJNR | |||||
| Feature | ||||||

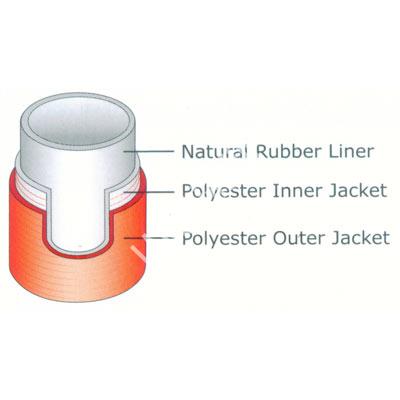

| This type Fire Hose is natural rubber lined and double jacketed product. Jacket constructions include a second closely woven jacket for extra durability, safety factor and higher service pressure. It is more aging and ozone resistant. The jacket shall be evenly and firmly woven and free from visible defects, thread knots, lumps and irregularities of twist. The warp will consist of high strength polyester staple yarns. The filler will be high strength, low elongation filament polyester. Jacket is plain or twill woven. | ||||||
| I.D.(Inch/mm) |
Working Pressure (Bar/Psi) |
Burst Pressure (Bar/Psi) |
Certification | |||
| 1-1/2" | 38 | 16/250,21/300,28/400 | 48/750,63/900,84/1200 | - | ||
| 2" | 52 | 16/250,21/300,28/400 | 48/750,63/900,84/1200 | - | ||
| 2-1/2" | 65 | 16/250,21/300,28/400 | 48/750,63/900,84/1200 | - | ||
| 3" | 75 | 16/250,21/300 | 48/750,63/900 | - | ||
| Application | Industrial and municipal building fire fighting Industrial plant, agriculture and construction site water discharge service or wash down |
|||||
| Couplings available | Storz& John Morris & Italy & Machino & Nakajima couplings and other type on your request. | |||||
| Construction | Single jacket, the warp is high strength polyester staple yarns. The filler is high strength, low elongation filament polyester yarns. |
|||||
