JIS H3300 Socket Brazing Type Concentric Redcuer,Bronze,Reducer,Marine Pipe Fitting -Product Details

Marine Pipe Fitting >> Reducer >> Bronze >> JIS H3300 Socket Brazing Type Concentric Redcuer


Product Name	Socket Brazing Type Concentric Reducer
Standard	JIS H3300

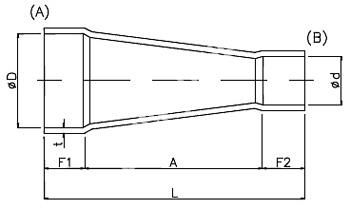

Product No:	N.D	Pipe(OD)		DIMENTION
Product No:	AxB	A	B	D	d	L	A	F1	F2	t	Weight
MFVE605-CR01	10x8	15	12	15.1	12.1	31	9	12	10	1.4	0.016
MFVE605-CR02	15x10	20	15	20.1	15.1	35	9	14	12	1.6	0.018
MFVE605-CR03	20x10	25	15	25.1	15.1	36	9	15	12	1.6	0.031
MFVE605-CR04	20x15	25	20	25.1	20.1	36	9	15	14	1.6	0.035
MFVE605-CR05	25x10	30	15	30.1	15.1	54	26	16	12	1.6	0.05
MFVE605-CR06	25x15	30	20	30.1	20.1	47	17	16	14	1.6	0.05
MFVE605-CR07	25x20	30	25	30.1	25.1	43	12	16	15	1.6	0.056
MFVE605-CR08	32x15	35	20	35.1	20.1	51	19	18	14	1.6	0.058
MFVE605-CR09	32x20	35	25	35	25.1	51	18	18	15	1.6	0.064
MFVE605-CR10	32x25	35	30	35.1	30.1	44	10	18	16	1.6	0.06
MFVE605-CR11	40x15	45	20	45.1	20.1	77	43	20	14	2	0.12
MFVE605-CR12	40x25	45	30	45.1	30.1	62	26	20	16	2	0.12
MFVE605-CR13	40x32	45	35	45.1	35.1	50	12	20	18	2	0.106
MFVE605-CR14	50x25	55	30	55.1	30.1	79	41	22	16	2	0.169
MFVE605-CR15	50x32	55	35	55.1	35.1	73	33	22	18	2	0.165
MFVE605-CR16	50x40	55	45	55.1	45.1	60	18	22	20	2	0.155
MFVE605-CR17	65x32	70	35	70.1	35.1	104	60	26	18	2	0.27
MFVE605-CR18	65x40	70	45	70.1	45.1	90	44	26	20	2	0.258
MFVE605-CR19	65x50	70	55	70.1	55.1	74	26	26	22	2	0.235
MFVE605-CR20	80x40	85	45	85.1	45.1	120	70	30	20	2.5	0.481
MFVE605-CR21	80x60	85	55	85.1	55.1	99	47	30	22	2.5	0.481
MFVE605-CR22	80x65	85	70	85.1	70.1	82	26	30	26	2.5	0.405
