Marine Pipe Fitting >> Union Joint >> Carbon Steel >> Bulkhead Union Elbow
　

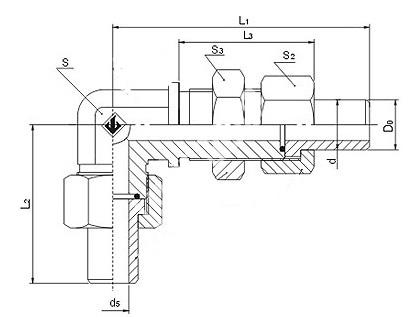

Product Name Bulkhead Union Elbow
Product NO Pipe(Do) d5 d L1 L2 L3 S S2 S3
MFVE609-CJ01 6 3 7.5 70 40 41 10 14 17
MFVE609-CJ02 10 6 11 79 47 44.5 14 19 22
MFVE609-CJ03 14 10 16 91 57 49 19 27 30
MFVE609-CJ04 18 12 19 97 63 51 23 32 36
MFVE609-CJ05 22 15 22 104 67 55 26 36 41
MFVE609-CJ06 28 20 28 113 75 57 32 41 50
MFVE609-CJ07 34 25 34 126 87 62 38 50 55
MFVE609-CJ08 42 32 42 140 96 68 50 60 65
MFVE609-CJ09 50 36 50 156 108 74 60 70 75
