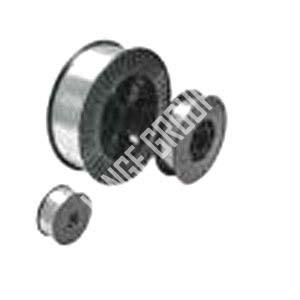

| Product Name | Flux cored Wire | |||||||||
| Product No. | MHAE421-WW014 | |||||||||
| Standard | ||||||||||
| GB | E501T-1 | |||||||||
| AWS | AWS A5.20 E71T-1C | |||||||||
| JIS | YFW-C50DR | |||||||||
| Welding Wire Type | Titania Flux-Cored Wires | |||||||||
| Welding Position | F,VD,OH,H | |||||||||
| Chemical Composition | C | Mn | Si | S | P | Cr | Ni | Mo | Cu | V |
| Typical | 0.055 | 1.35 | 0.4 | 0.009 | 0.018 | — | — | — | — | — |
| Mechanical Properties of Deposited Metal | ||||||||||
| Test Item | Yield Point ReL (MPa) | Tensile Strength Rm (MPa) | Elongation A 4(%) | Akv1(J)Tem | Shield Gas | |||||
| Temp. (℃) | Joule | |||||||||
| Typical | 440 | 535 | 32 | -20 | ≥27 110 | CO2 | ||||
| Application | ||||||||||
| It is widely used in structures fabricated by mild steel and 490MPa grade tensile strength steel,such as ships,pressure vessels,machinery,bridges,etc. | ||||||||||
