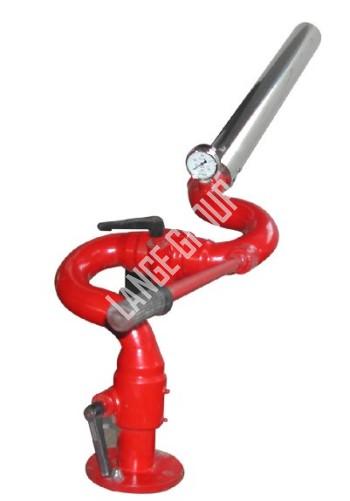

Marine Fire Suppression System >> Parts >> Foam Equipments >> Portable Foam EquipmentsFire Monitor PP32C/PP24C
 | ||||||
| Description | ||||||
| Air-foam Fire Monitor is useful to produce and spray foam to extinguish the long distance fires caused by class AB and C liquids or spray water to extinguish the long distance fires caused by solid materials. Type PP24C/ PP32C marine Fire Monitors are not only suitable for petrochemical works, oil storage tank areas, airports, warehouses, ports and docks, but also suitable for the installation such as ships, fixed platform on the sea and fire vehicles. Type PP24C/ PP32C Fire Monitor has only barrel. The barrel can not only spray foam but also spray water. Its control handle can make the Fire Monitor elevate, depress or rotate. | ||||||
| Type | Service PressureMpa | Max Service PressureMpa | L/S | m | ||
| Mixed Liquids | Water | Foam | Water | |||
| PP24C | 0.5-1.0 | 1.0 | 24 | 24 | 40 | 45 |
| PP32C | 32 | 32 | ?荽5 | ?莸0 | ||
| Horizontal Rotary(?悌縏D> | Max Angle of Elevation (?悌縏D> | Max Angle of Depression (?悌縏D> | Allowable Error of Discharge Capacity | Foaming Times at 20?妫?TD> | 25Discharge Time (min)( at 20?姗縏D> | |
| ?莴180?慵疶D> | ?莴70?慵疶D> | ?墉60?慵疶D> | +8% | ?荻 | ?莶.5 | |
