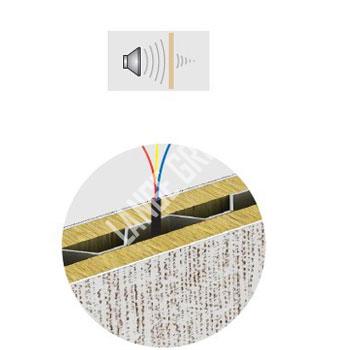

Marine Non-Metal Materials >> Panel System >> Wall Panel >> Type C Wall PanelType C Acoustic wall panel with cable slot
|  | ||||
| Product Name: | Type C Acoustic wall panel with cable slot | ||||
| Product No.: | MMDE100-PP008 | ||||
| Type | SB25C | ||||
| Fire class | B-15 | ||||
| Dimension | 50mm(t)x550mm(w)xlength(max.3500mm) | ||||
| Weight | 22.3kg/m2 | ||||
| Sound reduction | 45dB | ||||
| Thermal transmittance | 0.55 Kcal/m2h．℃ | ||||
| Surface finish | PVC/PET film Laminated (low flame-spread) or galvanized Steel sheet | ||||
| Tolerances | Width±1 , Height ±3 , Thickness±1 | ||||
| Core material | Rock wool 150kg/m3 | ||||
