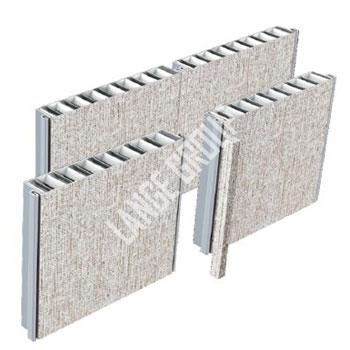

Marine Non-Metal Materials >> Panel System >> Wall Panel >> Type C Wall PanelType C One Side Wall Panel
|  | ||||
| Product Name: | Type C One side wall panel | ||||
| Product No.: | MMDE100-PP004 | MMDE100-PP005 | |||
| Type | B25C | B25CA | |||
| Fire class | B-0 | B-0 | |||
| Dimension | 25mm(t)x550mm(w)xlength(max.3500mm) | ||||
| Weight | 18.1kg/m2 | 15.9kg/m2 | |||
| Sound reduction | 32dB | dB | |||
| Thermal transmittance | 1.06 Kcal/m2h | 3.35 Kcal/m2h | |||
| Surface finish | PVC/PET film Laminated (low flame-spread) or galvanized Steel sheet | ||||
| Tolerances | Width1 , Height 3 , Thickness1 | ||||
| Core material | Rock wool 150kg/m3 | Aluminum honeycomb | |||
